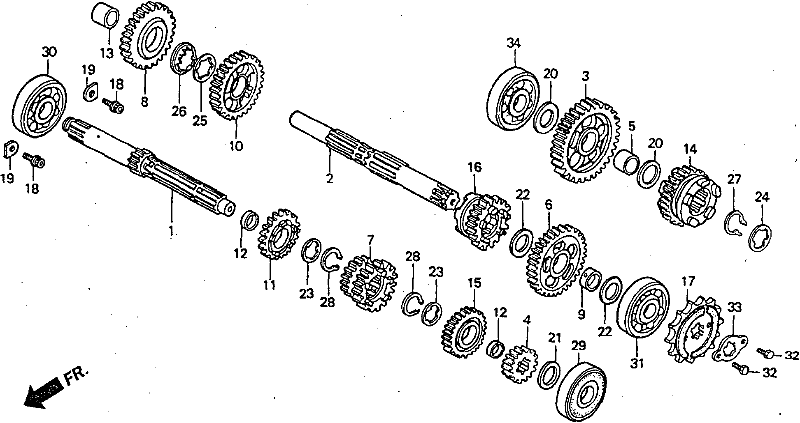

| REF. NO | PART NUMBER | DESCRIPTION | REQD. NO |
| 1 | 23210-KW6-840 | AH MAINSHAFT COMP | 1 |
| 2 | 23221-KW6-901 | AH SHAFT COUNTER | 1 |
| 3 | 23411-KW6-840 | AD GEAR,C-1 35T | 1 |
| 4 | 23421-KW6-900 | AD GEAR,MAINSHAFT SE | 1 |
| 5 | 23425-KS3-900 | AH BUSH,17MM | 1 |
| 6 | 23431-KW6-840 | AD GEAR,C-2 31T | 1 |
| 7 | 23441-KW6-840 | AD GEAR,M-3,4 17/19T | 1 |
| 8 | 23451-KW6-840 | AD GEAR,C-3 | 1 |
| 9 | 23455-KR1-760 | AH BUSH,20MM | 1 |
| 10 | 23461-KW6-840 | AD GEAR,C-4 23T | 1 |
| 11 | 23471-KW6-840 | AD GEAR,M-5 23T | 1 |
| 12 | 23472-KY4-900 | AH COLLAR,20X22X10 | 2 |
| 13 | 23475-KE1-010 | AH BUSH,22MM | 1 |
| 14 | 23481-KW6-840 | AD GEAR,C-5 24T | 1 |
| 15 | 23491-KW6-840 | AD GEAR,M-6 24T | 1 |
| 16 | 23501-KW6-840 | AD GEAR,C-6 22T | 1 |
| 17 | 23801-KW6-900 | AH SPROKET,DRIVE (14T) | 1 |
| 18 | 90071-MF5-000 | AH BOLT SOC FLG 6X14 | 2 |
| 19 | 90441-KY4-900 | AH PLATE,BRG HOLD | 2 |
| 20 | 90452-115-000 | AH WASHER,17MM | 2 |
| 21 | 90453-235-000 | AH WASHER,THRUST | 1 |
| 22 | 90454-107-000 | AH WASHER,B.THRUST | 2 |
| 23 | 90455-KR1-760 | AH WASHER,SPLINE 20M | 2 |
| 24 | 90464-HB5-010 | AH WASH.SPLIN,22MM | 1 |
| 25 | 90464-444-000 | AH WASHER,SPLINE | 1 |
| 26 | 90465-KE1-010 | AH WASHER LOCK | 1 |
| 27 | 90601-KE1-000 | AH CIR CLIP,22MM | 1 |
| 28 | 90605-200-000 | AH SET RING,20MM | 2 |
| 29 | 91001-KW6-971 | AH BRG,BALL.RADIAL 16X35X10 | 1 |
| 30 | 91003-KJ1-003 | AH BRG. BALL RADIAL 17X42X12 | 1 |
| 31 | 91102-GE1-711 | AH BRG,RADIAL BALL 6204 | 1 |
| 32 | 92101-06010-0A | AH BOLT,HEX.,6X10 | 2 |
| 33 | 95014-92100 | AH PL B FIXING | 1 |
| 34 | 96140-62030-00 | AH BRG RADIAL BALL 6203U | 1 |
