NSR150 Special
| Build Date: | March 2003 |
| Builder: | Tyga Performance |
| Motorcycle Model: | Honda NSR150SP (KW6) “NSR150 Special” |
| Products Used: | TYGA pipe and carb kit with carbon reeds to unlock stronger top-end power, plus carbon/Kevlar silencer. Handling and control upgrades include Brembo front brake conversion with braided lines and an NSR250 Nissin 14mm master cylinder, plus a TYGA rear set/step kit for ground clearance. Styling finishes with a TYGA seat cowl and matching TYGA tail light. All TYGA products used listed below. |
This project bike may look at first glance in the photo like any other NSR150SP. Appearances can be deceiving though and this bike has had many work hours and dollars lovingly spent to improve what is already one of the most attractive small bikes around.
For those readers unfamiliar with the NSR150SP, here is some background. It was introduced as an Asian model only in 1997. This model (KW6) like all the NSR150s before it was built by Asia Pacific Honda in Thailand. The bike was actually styled in Italy and the engines built in Japan. With Pro Arm suspension, RC valves, Nika-Sil coated cylinders, tacho, big bike looks and Repsol paint, it was to be the flagship of the Honda range at a time when Honda sales in Thailand alone were approaching 800,000 bikes a year!
Unfortunately, it was not a big sales success, due to its price tag and the Asian economic crisis. Sales by 2000 were on the slide and it was exported to Australia where it has been part of the Honda range there until recently.
There aren’t any ‘before’ shots of this bike which was almost new and totally stock when we bought it. We did do a couple of dyno runs of the stock bike though which were quite disappointing.
The trouble with the 150SP is that it does not deliver the power it promises. The sales brochures were hopelessly optimistic. However, all was not lost! It is possible to get quite a bit of power from the motor which is a of very sophisticated two stroke design. The motor was carefully ported and excess weight removed from the balance shaft as well as other engine internal components to allow the motor to rev freely.

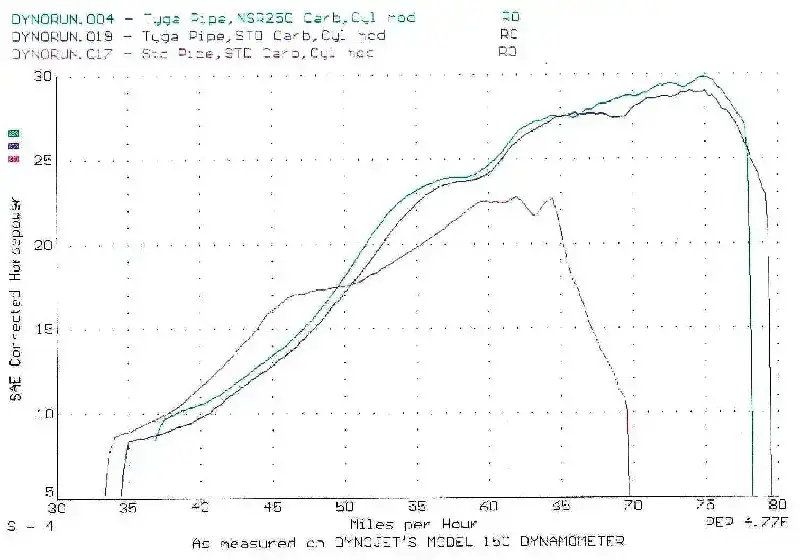

A TYGA Pipe was obviously fitted and the power measured and there was a drastic improvement in power over stock pipes as can be seen by the dynograph above.
We weren’t content until we had found the ultimate top end performance by fitting the TYGA Performance NSR150SP carb. kit as well as carbon reeds.
We then measured the power again and got an even better curve as shown below.
So now we had the power, we needed the chassis improvements to take advantage of the extra performance. The stock rubber was junked in preference to some sticky race compound Michelins. Now the tires were good, it would be safe to improve the brakes! We fitted a Brembo caliper, steel lines front and rear and an NSR250 Nissin 14mm master cylinder to give extra power to the front end. These improvements gave much more confidence to push the bike harder and lean further.
The next thing that then limited the bike was the ground clearance. The stock hangers mount the pegs low and the position is both uncomfortable and too low to lean the bike. In addition the hangers are heavy and the gear shifter awkward to use. The TYGA Performance step kit we fitted fixed all these problems and cleaned up the look of the bike too.
The NSR150SP is a great looking bike from the factory and didn’t need a complete makeover. The only bodywork item we changed was the seat cowl which we replaced for a TYGA NSR150SP unit painted to match the rest of the bike. This gives the bike smoother lines and a racier image.
The front headlight was kept stock as it is an attractive and modern unit with a good beam.
The tail light was changed to a special TYGA Tail light to match the TYGA Tail.
Overall, then, much improved in performance and more attractive too.
Products used on this project
