Description

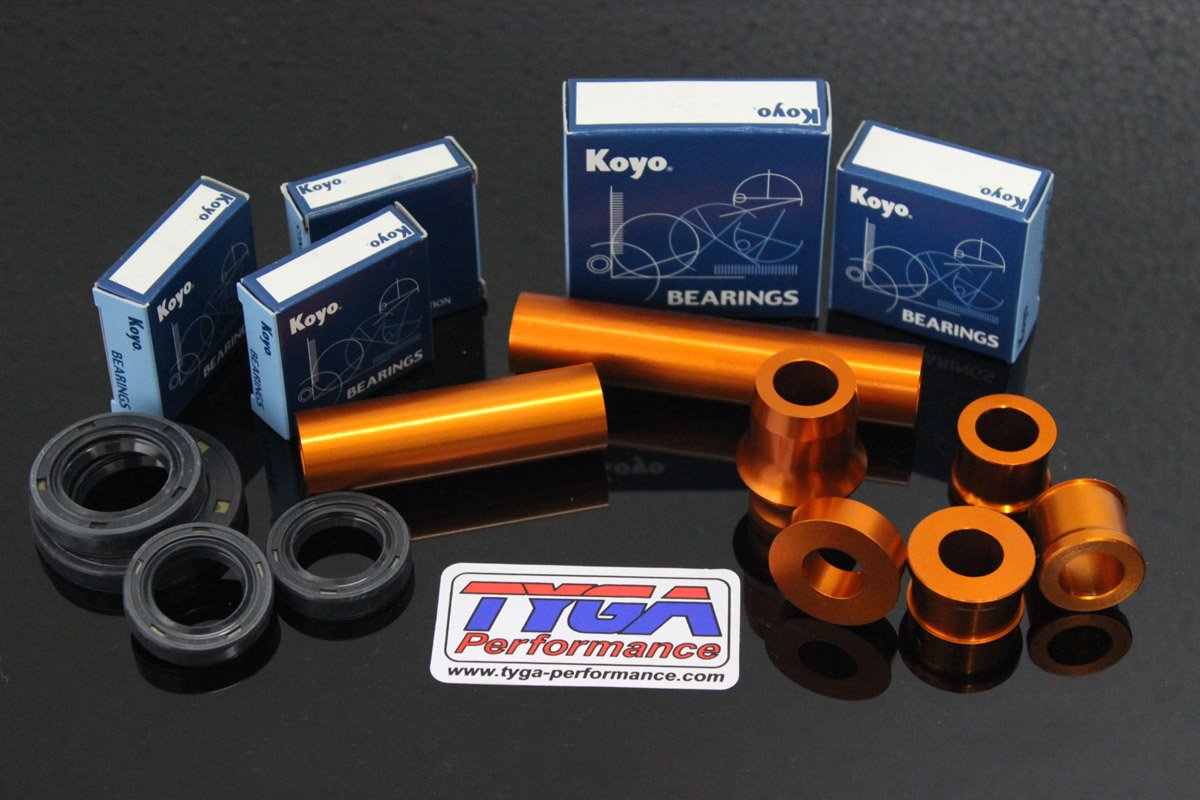

Wheel, Aluminium Spacer, Bearing, and Seal Kit, (Orange) KTM RC and Duke Series

This comprehensive kit is specifically designed for the KTM racer in mind. The wheel spacers have been cleverly designed to be captured in the seals (instead of being loose as they are with stock set up), enabling quick and easy wheel removal and installation; essential when every minute counts to get out in time for a session or race.

In addition, the spacers are all made out of high quality aluminium (6061-T6) instead of steel giving a useful saving of 65% in important unsprung weight.

Finally, we provide a complete set of high quality Japanese Koyo wheel bearings to replace the not so good ones supplied from the factory.

All in all, a useful and inexpensive upgrade. Now you really are ready to race!

Included in this kit are the following components:

Bearings for Front Wheel, Rear Wheel, and Sprocket Carrier:

• 1x 6205 Bearing KOYO 6205 2RS
• 3x 6202 Bearing KOYO 6202 2RS
• 1x 6302 Bearing KOYO 6302 2RS

Seals for Front Wheel and Rear Wheel

• 2x TYPP-0013 Oil Seal NOK 22 x 35 x 8mm.
• 1x TYPP-0014 Oil Seal NOK 26 x 42 x 8mm.
• 1x TYPP-0015 Oil Seal NOK 30 x 52 x 7mm.

Spacers:

• front wheel, left, right and centre
• rear wheel, left, right, centre and sprocket carrier

Note: We also offer a similar product in silver and kits for the wheel spacers only.
