Description

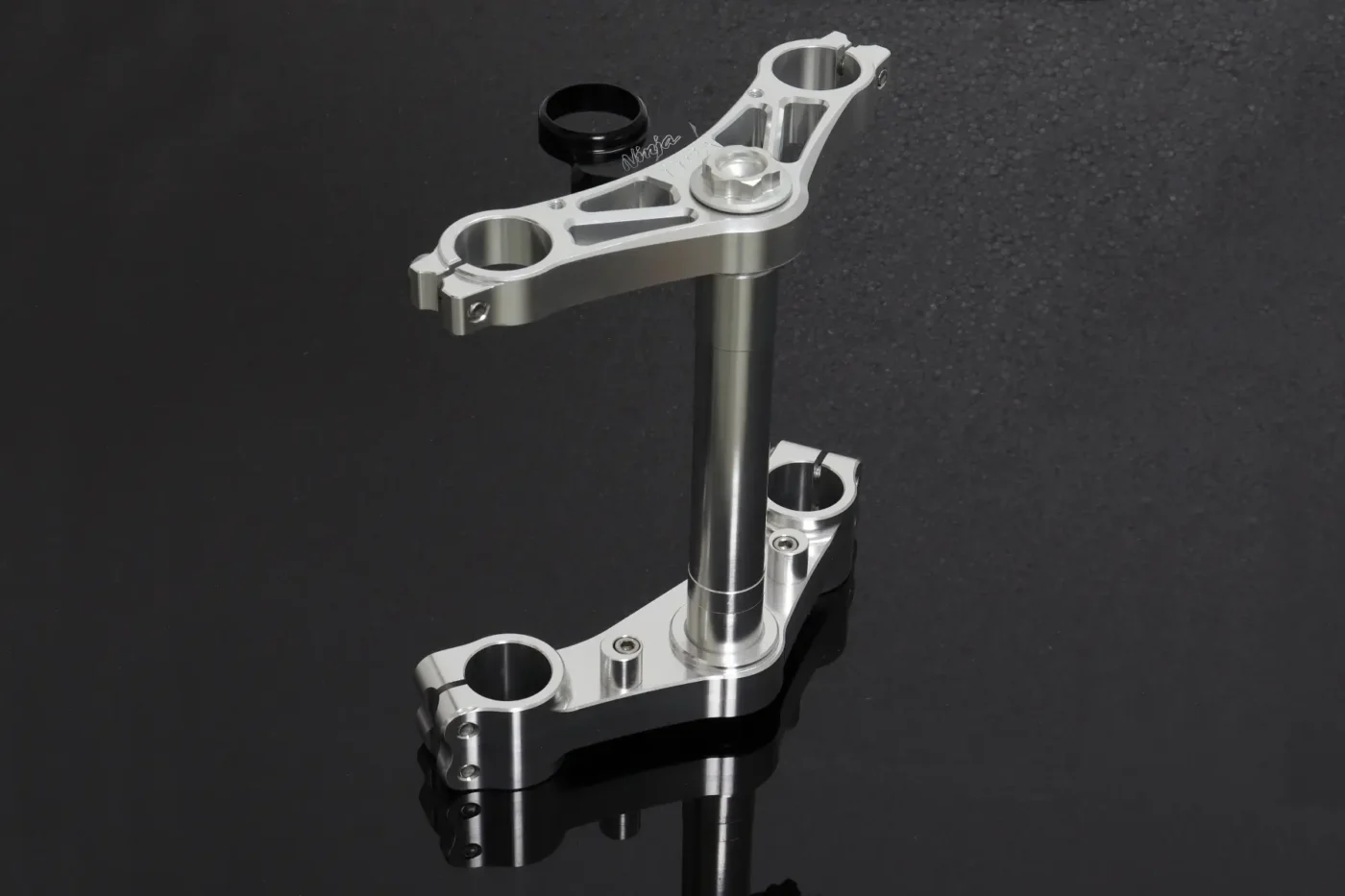

Triple Clamp Set, CNC Silver, KRR150ZX

CNC machined TYGA triple clamp set for your KRR150ZX.

These stylish, all aluminium triple clamps are a direct replacement for the OEM KRR150ZX triple clamps, and with the help of FEA testing not only do they look fantastic, but they perform!

This set includes the washer, lower seal and lower bearing race, pre-fitted to the lower clamp.
Please note that the remaining headstock bearing parts are not included and must be purchased separately.

The remaining parts are:

• 39x  92140-0008  Ball-Steel, 1/4″
• 1x  92048-0037  Race, Steering Stem Bearing
• 1x  92048-0036  Race, Steering Stem Bearing
• 1x  92048-0032  Race, Steering Stem Bearing

The top clamp has the ‘bolt-on’ ignition switch/lock holder fitted, which can be removed for racing.

The Steering stoppers can be rotated for adjustable steering lock position, giving maximum steering lock for street application, or a reduced angle for racing.

Designed and CNC machined in house by TYGA from aircraft spec 6061-T6 alloy.

Tightening recommendations:

• Lower clamp pinch bolts: 23Nm.
• Top clamp pinch bolts: 23Nm.
