Description

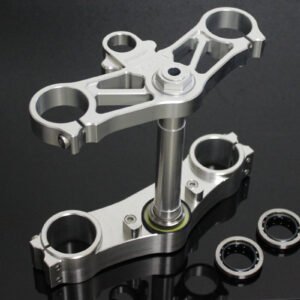

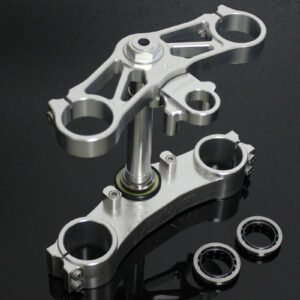

Triple Clamp Set, CNC Silver, CBR600RR Forks to fit RVF400 NC35

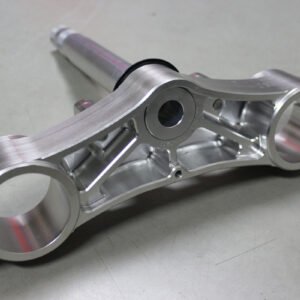

CNC machined TYGA lower triple clamp for the NC35 RVF400 to take 53 mm diameter CBR600RR forks.(For later model CBR600RR which use 54 mm forks, please change options below)

Designed and machined in-house by TYGA from aircraft spec 6061-T6 alloy. FEA tested and developed for increased strength without unnecessary weight increase.

They are delivered ready to fit with all necessary bearings and lower seal, and even an aluminium top clamp nut, to complete the transformation. The top clamp has the ‘bolt-on’ ignition switch/lock holder fitted, which can be removed for racing.

The Steering stoppers are reversible, giving maximum steering lock for street application, or a reduced angle for racing.

Tightening recommendations:

• Lower clamp pinch bolts: 23Nm.
• Top clamp pinch bolts: 23Nm.
