Description

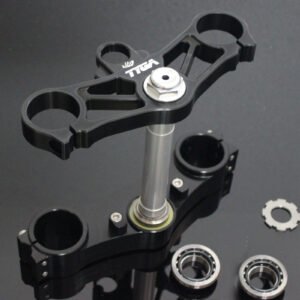

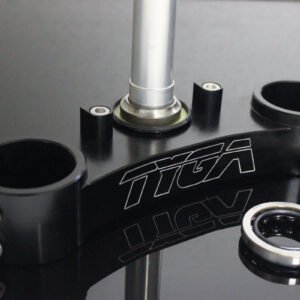

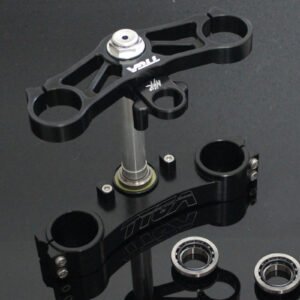

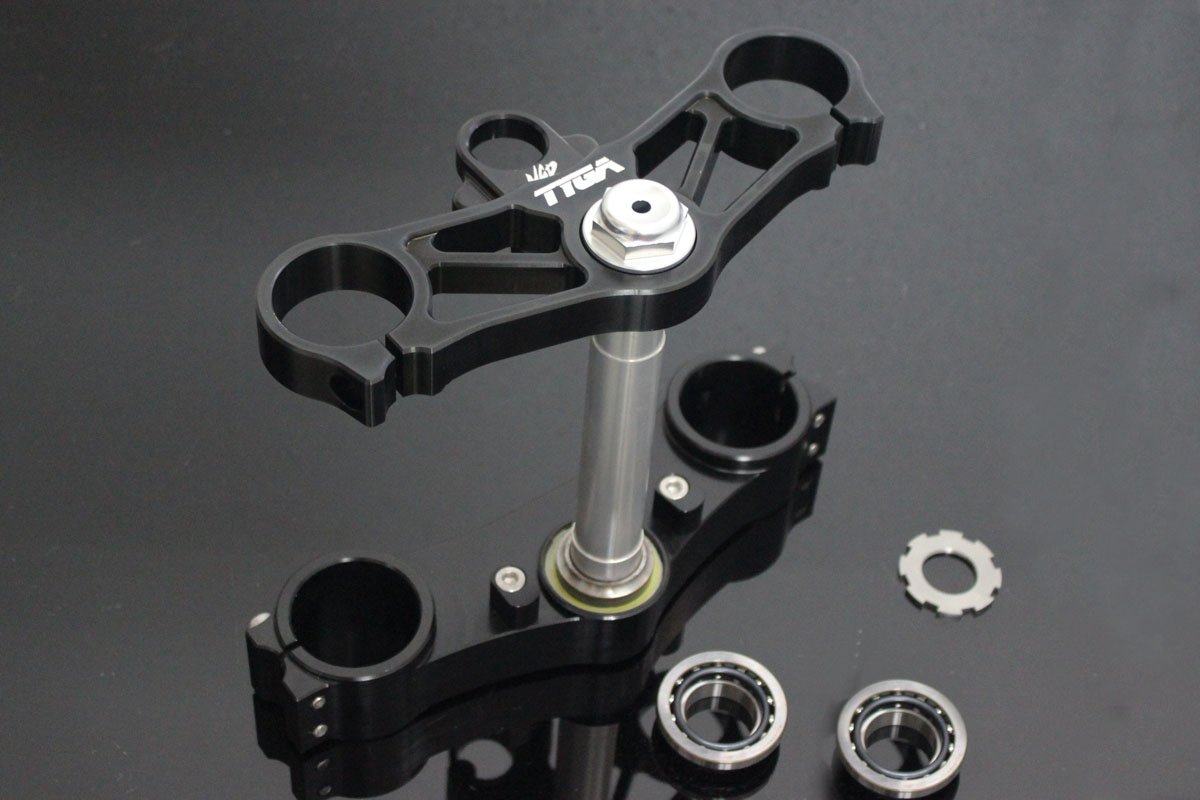

Triple Clamp Set, CNC Black, CBR600RR Forks to fit MC21
CNC machined TYGA triple clamp set for the MC21 NSR250 to take 53 mm diameter CBR600RR forks.
For later model CBR600RR which use 54 mm forks, please change options above
Designed and machined in-house by TYGA from aircraft spec 6061-T6 alloy. FEA tested and developed for increased strength without unnecessary weight increase.

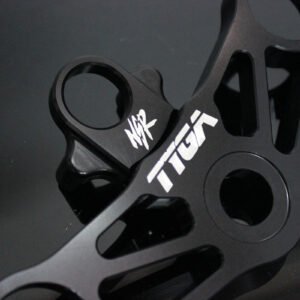

They are delivered ready to fit with all necessary bearings and lower seal, and even an aluminium top clamp nut, to complete the transformation. The top clamp has the ‘bolt-on’ ignition switch/lock holder fitted, which can be removed for racing.
The Steering stoppers are reversible, giving maximum steering lock for street application, or a reduced angle for racing.
Note, we recommend using Handlebar set 48 mm. TYLY-1012 when installing this triple clamp set to avoid clearance issue with the NSR fairing.
Tightening recommendations:
- Lower clamp pinch bolts: 23Nm.
- Top clamp pinch bolts: 23Nm.
kevin marshall (verified owner) –
I recently converted my MC21SP to a CBR inverted fork.
The yokes are beautifully machined and fitted perfectly.
Holds the forks securely and saves a Ton of weight.
