Description

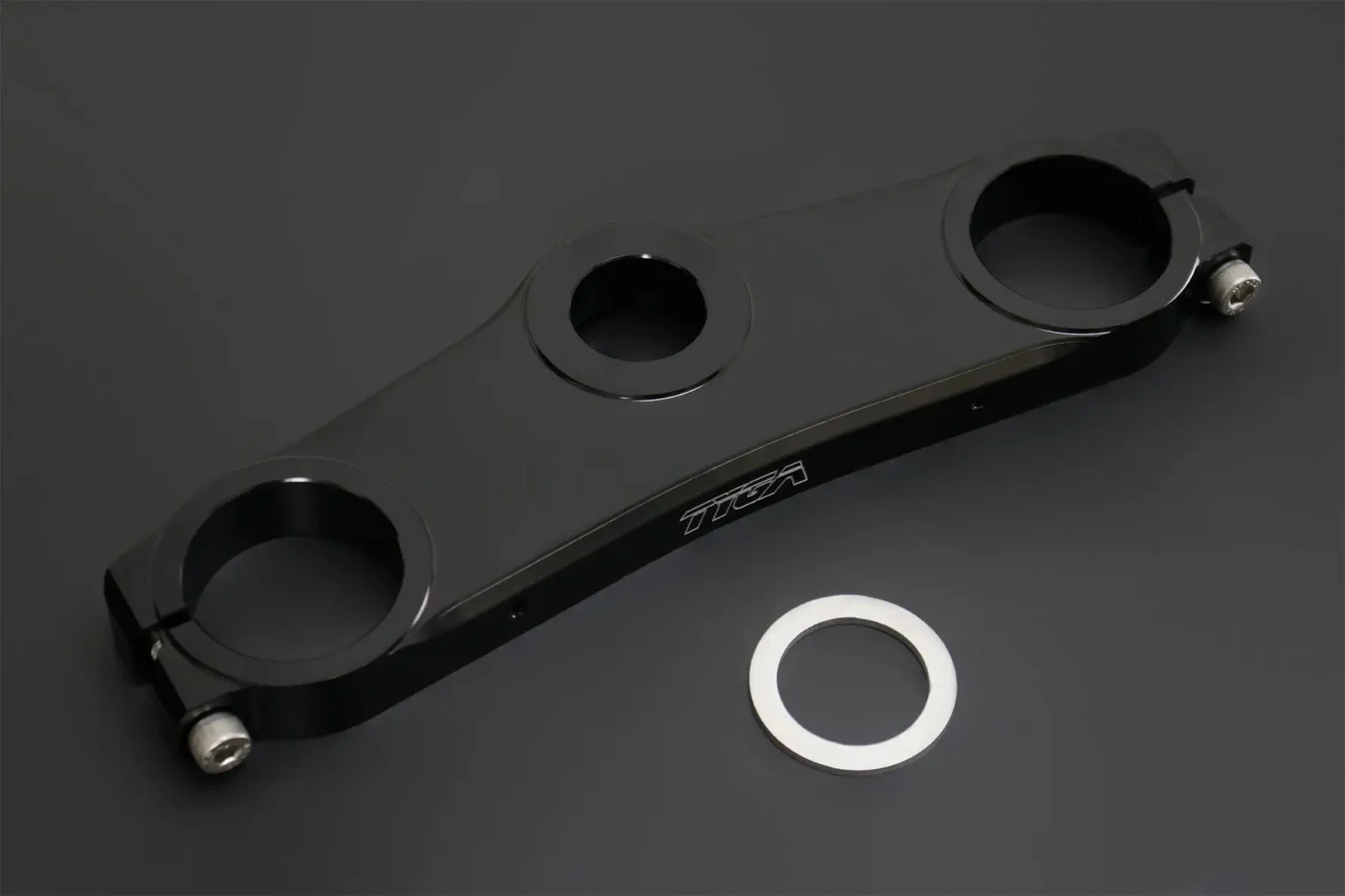

Top Triple Clamp Set, CNC, Black, Race, HRC Style, SP2

Designed and machined in house as a race replacement for the OEM top triple clamp.

Crafted from aircraft spec 6061-T6 alloy for minimum weight and maximum strength.

The fork pitch and offset are the same as the OEM clamp, so this can be used together with the OEM lower clamp.

Please note that this top triple clamp set is for race use only and has no provisions for mounting the ignition switch, so an alternative mounting position for the ignition switch must be found.

For correct fitting, the top preload lock nut and locking washer must be removed and replaced with the TYLY-0371C spacer.

This is the same fitting style as the true HRC setup.

For the full triple clamp set, please see the following product:

• TYLY-2371 Triple Clamp Set, CNC, Race, HRC Style, SP2

Other compatible parts:

• TYLY-0373 Lower Triple Clamp Set, CNC Silver, Race, HRC Style, SP2

If you are looking for SP1 triples, please see the following products:

• TYLY-2370 Triple Clamp Set, CNC, Race, HRC Style, SP1

Other compatible parts:

• TYLY-0372 Lower Triple Clamp Set, CNC Silver, Race, HRC Style, SP1

Tightening recommendations:

• Top clamp pinch bolts: 23Nm.
• Fork Pitch: 214mm.
• Fork Offset: 30mm.
