Description

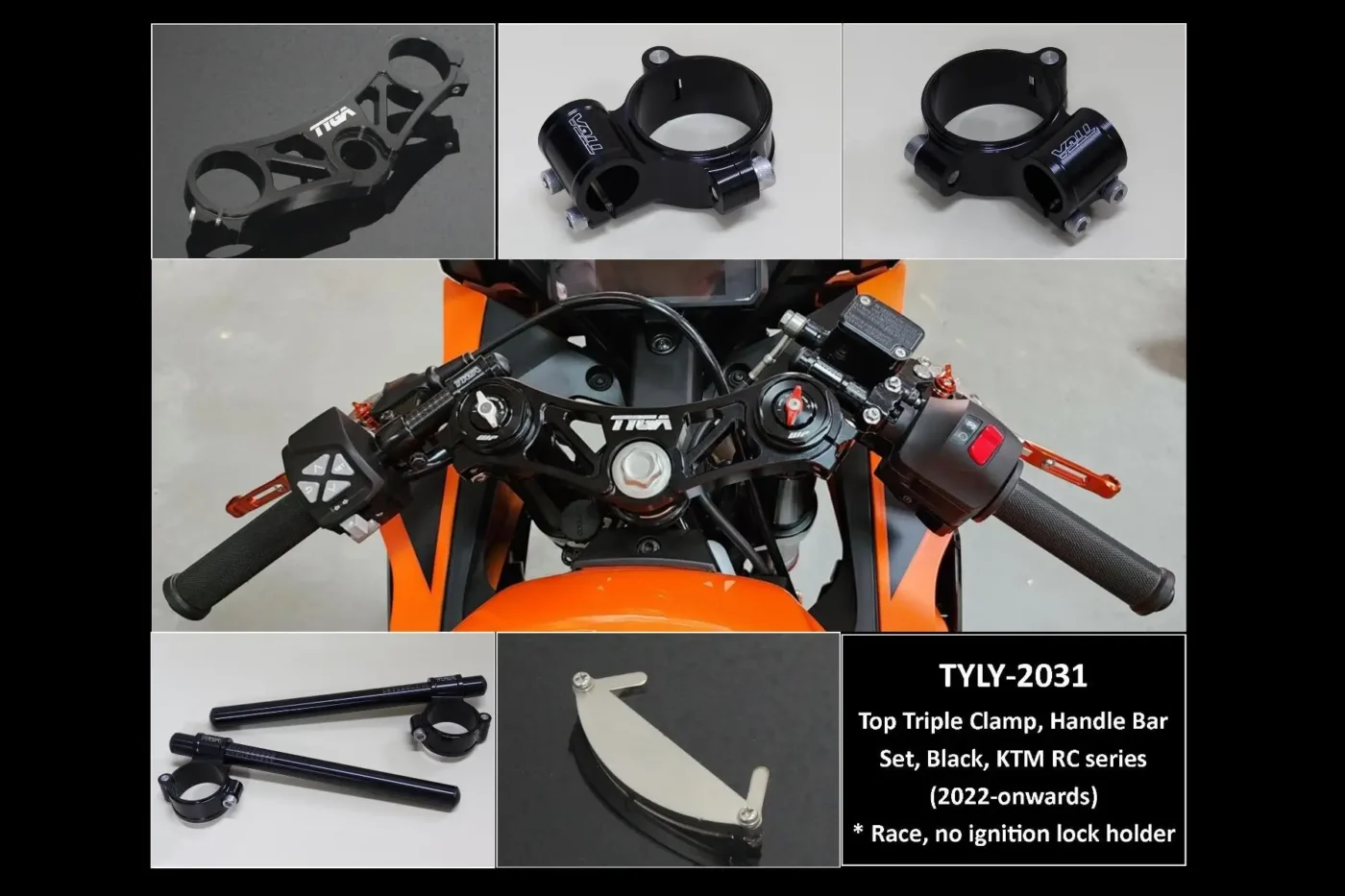

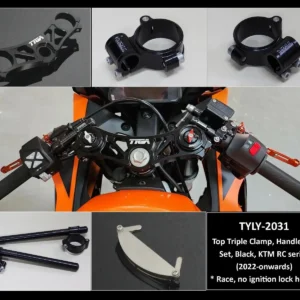

Top Triple Clamp, and Handlebar Clamp Set, Black, KTM RC Series 2022-2023

Consisting of the following products:

TYLY-1073(p) Top Triple Clamp, CNC Black, KTM RC Series

CNC machined TYGA top triple clamp

Designed and machined in house by TYGA, as a direct replacement for the OEM top triple clamp. FEA tested and developed for increased strength without unnecessarily increased weight.

Crafted from aircraft spec 6061-T6 alloy, the top triple clamp is ready to fit.

Important note: This product does NOT include the ignition lock holder and is intended for race use, so alternative mounting of the ignition switch (or removal) is necessary.  Note that if you require an ignition lock with a steering lock function, please order the following TYLY-1531

1x TYLY-1731L Handlebar Clamp, Left, Hinge Type, Black, KTM RC Series

This handlebar clamp is designed to be used with our TYGA top triples: TYLY-1073 (2014-2021) and TYLY-1273 (2022-2023) and can be used with other models with a 51 mm. clamping face on the fork leg.

The clamp features a hinged design for quick and easy fitting.

* The Handlebar angle is 7 degrees down.

1x TYLY-1731R Handlebar Clamp, Right, Hinge Type, Black, KTM RC Series

This handlebar clamp is designed to be used with our TYGA top triples: TYLY-1073 (2014-2021) and TYLY-1273 (2022-2023) and can be used with other models with a 51 mm. clamping face on the fork leg.

The clamp features a hinged design for quick and easy fitting.

* The Handlebar angle is 7 degrees down.

1x TYLY-2069A Handlebar Tube, Index Mark, Assy., Black

The Handle bar diameter is 7/8” (22.2mm), and features index marks for easy and consistent assembly.

Comes fitted with plastic bungs in each end.

No location holes are drilled. Compatible with handlebar tubes of TYLY-1431 Handlebar Set, Racing, Hinge Type, Black, KTM RC390 2022-2023 and others that do not require a location drilling

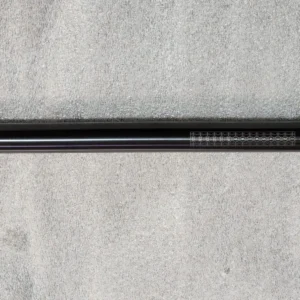

1x TYLY-2069B Handlebar Tube, Index Mark, Assy., Black

The Handle bar diameter is 7/8” (22.2mm), and features index marks for easy and consistent assembly.

Comes fitted with plastic bungs in each end.

One 5mm location hole is drilled 190mm from end. for compatibility with the right handlebar tube of TYLY-1431 Handlebar Set, Racing, Hinge Type, Black, KTM RC390 2022-2023 See picture for specification.

1x BPSY- 0159 Steering Stopper, KTM RC Series

Designed and manufactured in house by TYGA Performance, this stainless steel steering stopper restricts the amount of steering angle on the KTM RC series. Ideal for racing and preventing smashed thumbs from ‘tank slappers’. Installs in minutes. No special tools or dismantling of the bike required.

* For the 2022-2023 model, it is not necessary to install a steering stopper when installing TYGA handlebars and triple clamp.

For similar product see TYLY-1531
