Description

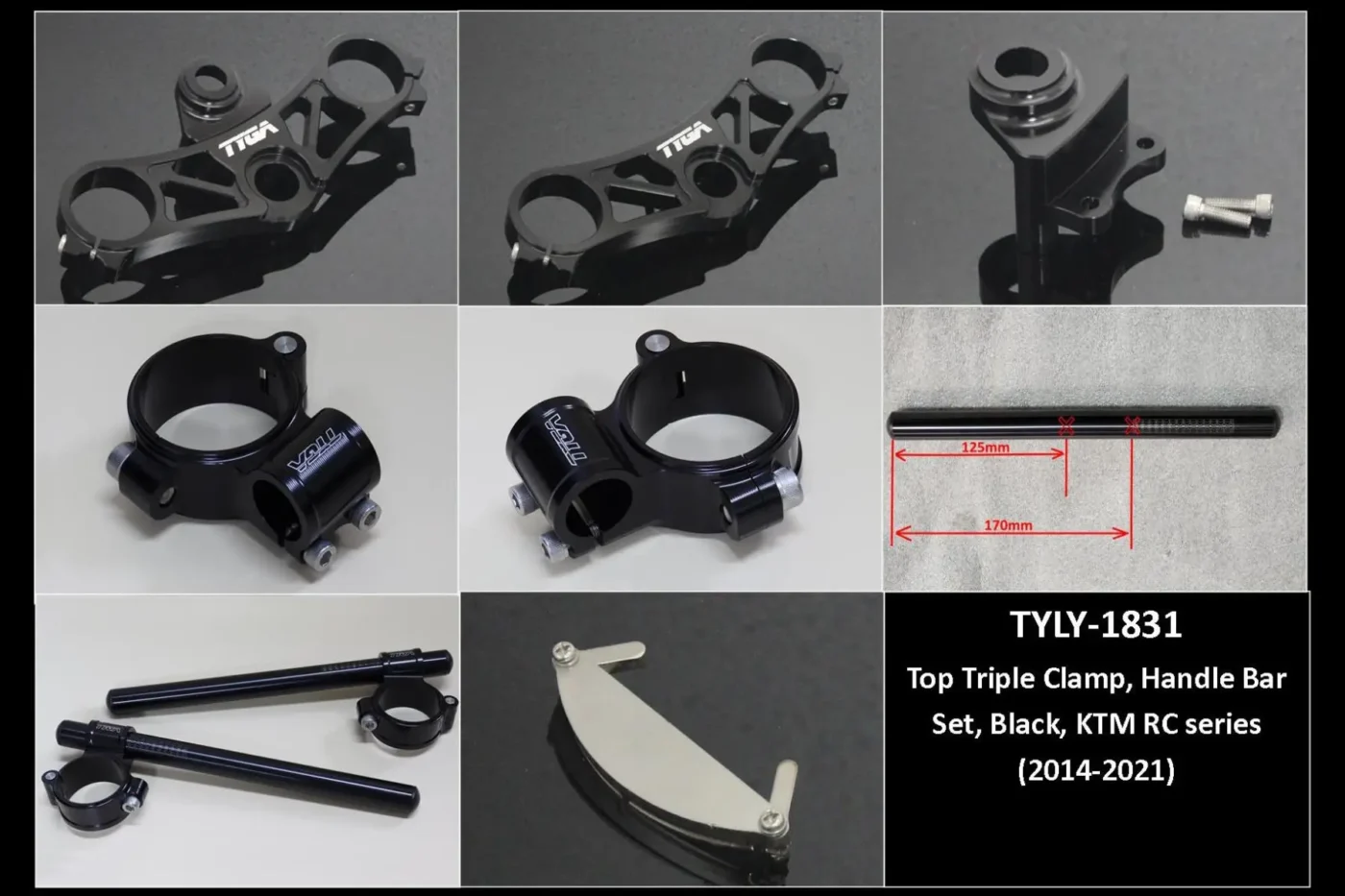

Top Triple Clamp (Race) and Handlebar Clamp Set, Black, KTM RC Series 2014-2021

Consisting of the following products:

1x TYLY-1073(p) + TYLY-1173

CNC machined top triple clamp with detachable ignition switch/lock holder for your KTM RC Series motorcycle

Designed and machined in house by TYGA, as a direct replacement for the OEM top triple clamp. FEA tested and developed for increased strength without unnecessarily increased weight.

Crafted from aircraft spec 6061-T6 alloy, the top triple clamp is ready to fit.

The detachable ignition lock holder is positioned to allow use of the steering lock, but can be removed for race use.

1x TYLY-1331L Handlebar Clamp, Left, Hinge Type, Black, KTM RC Series

This handlebar clamp is designed to be used with our TYGA top triples: TYLY-1073 (2014-2021) and TYLY-1273 (2022-2023) and can be used with other models with a 51 mm. clamping face on the fork leg.

The clamp features a hinged design for quick and easy fitting.

* The Handlebar angle is 7 degrees down.

1x TYLY-1331R Handlebar Clamp, Right, Hinge Type, Black, KTM RC Series

This handlebar clamp is designed to be used with our TYGA top triples: TYLY-1073 (2014-2021) and TYLY-1273 (2022-2023) and can be used with other models with a 51 mm. clamping face on the fork leg.

The clamp features a hinged design for quick and easy fitting.

* The Handlebar angle is 7 degrees down.

2x TYLY-2069C Handlebar Tube, Index Mark, Assy., Black

The Handle bar diameter is 7/8” (22.2mm), and features index marks for easy and consistent assembly.

Comes fitted with plastic bungs in each end.

Two 5mm location holes are drilled 125mm and 170mm from end See picture for specification.

1x BPSY- 0159 Steering Stopper, KTM RC Series

Designed and manufactured in house by TYGA Performance, this stainless steel steering stopper restricts the amount of steering angle on the KTM RC series. Ideal for racing and preventing smashed thumbs from ‘tank slappers’. Installs in minutes. No special tools or dismantling of the bike required.
