Description

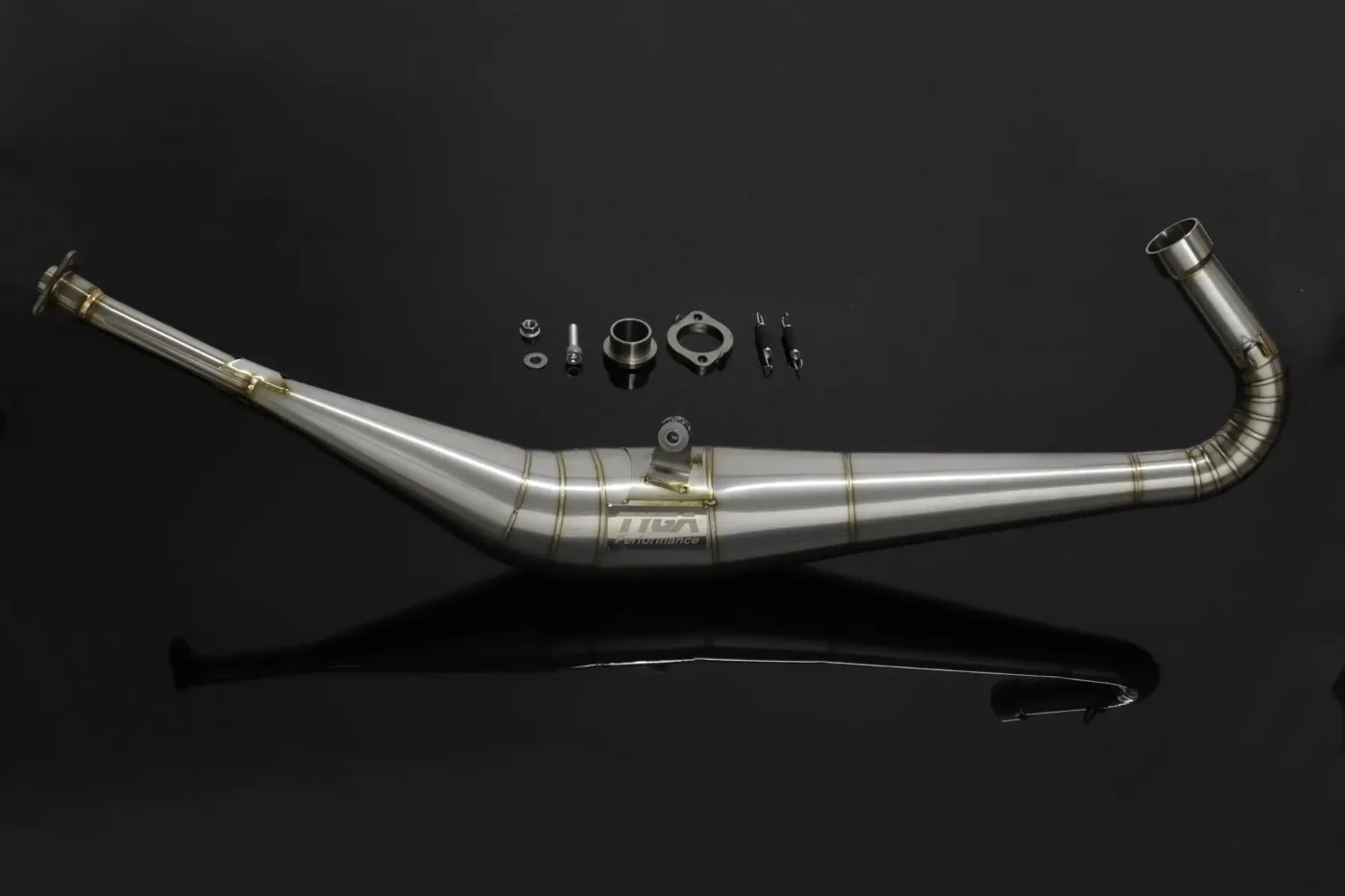

Set, Exhaust Chamber, Yamaha RX-Z 135

TYGA Performance combines modern technology and traditional techniques to bring you the best in two stroke chamber design. With the help of advance computer software, and extensive dyno and road testing, we are able to design the optimum chambers for your model motorcycle. Chamber sections are laser cut for precision, but this is where the automation ends. All chambers are hand rolled and welded by our expert craftsmen to give the level of perfection that you’d expect when purchasing a TYGA Performance exhaust system.

For optimal performance this chamber requires that the standard belly pan and mounting hardware is removed.

This allows for for the best header design with no compromise.

Fitting to the frame is by way of a rubber isolation mount to keep vibrations to a minimum.

Unlike other aftermarket chambers for the RX-Z 135, the TYGA chamber allows you to retain the centre stand, giving you the best package for cosmetic beauty, sound, performance and convenience.

 Parts inc:

• 1x  EXCB-0050  Exhaust Chamber, Stainless, Yamaha RX-Z 135
• 1x  EXMN-0050  Manifold, Yamaha RX-Z 135
• 1x  EXMC-0050  Manifold Clamp, Yamaha RX-Z 135
• 2x  EXSG-0001  Spring, Exhaust, Two Stroke
• 1x  TYLY-0252  Stay, Silencer, Aluminium, Universal
• 1x  EXCL-0010  Clamp, Silencer, Single, 61mm., Central, Assy.

Also, all the necessary hardware to secure the chamber to the bike.

Not included is the silencer, we recommend the TYGA shorty silencers.

Fitting a new exhaust gasket is recommended but not included.

A universal aluminium stay is provided in the set, however, we also have TYLY-0304 Silencer Stay, Yamaha RX-Z 135 which can be purchased separately for that high quality look.

We advise using high temp RTV on all joints. Allow to cure before use.

*Please note that for fitting the chamber it is necessary to remove the right hand step hanger bolt and replace this with the TYGA supplied bolt.

The chamber is then mounted on the inside of the frame and secured with the M10 nut (supplied).
