Description

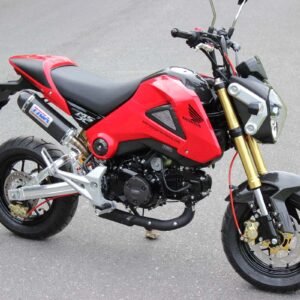

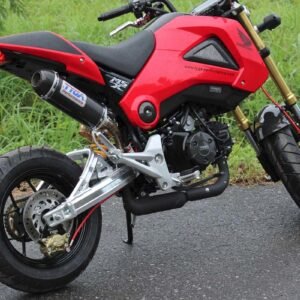

HEL Rear Brake Line Kit – Honda MSX125, Brembo 84mm Pitch Caliper *

Available in the following colours:

1) Brake line:

• solid red
• translucent red
• solid black
• silver (clear coating)

Choose in option dropdown.

2) Fitting – Supplied with a silver ferrule complete with HEL logo and a choice of 3 different colour banjo bolts:

• red
• blue
• silver

Choose in option dropdown.

See photos below for reference.

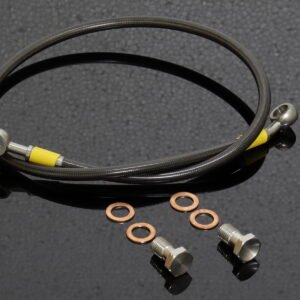

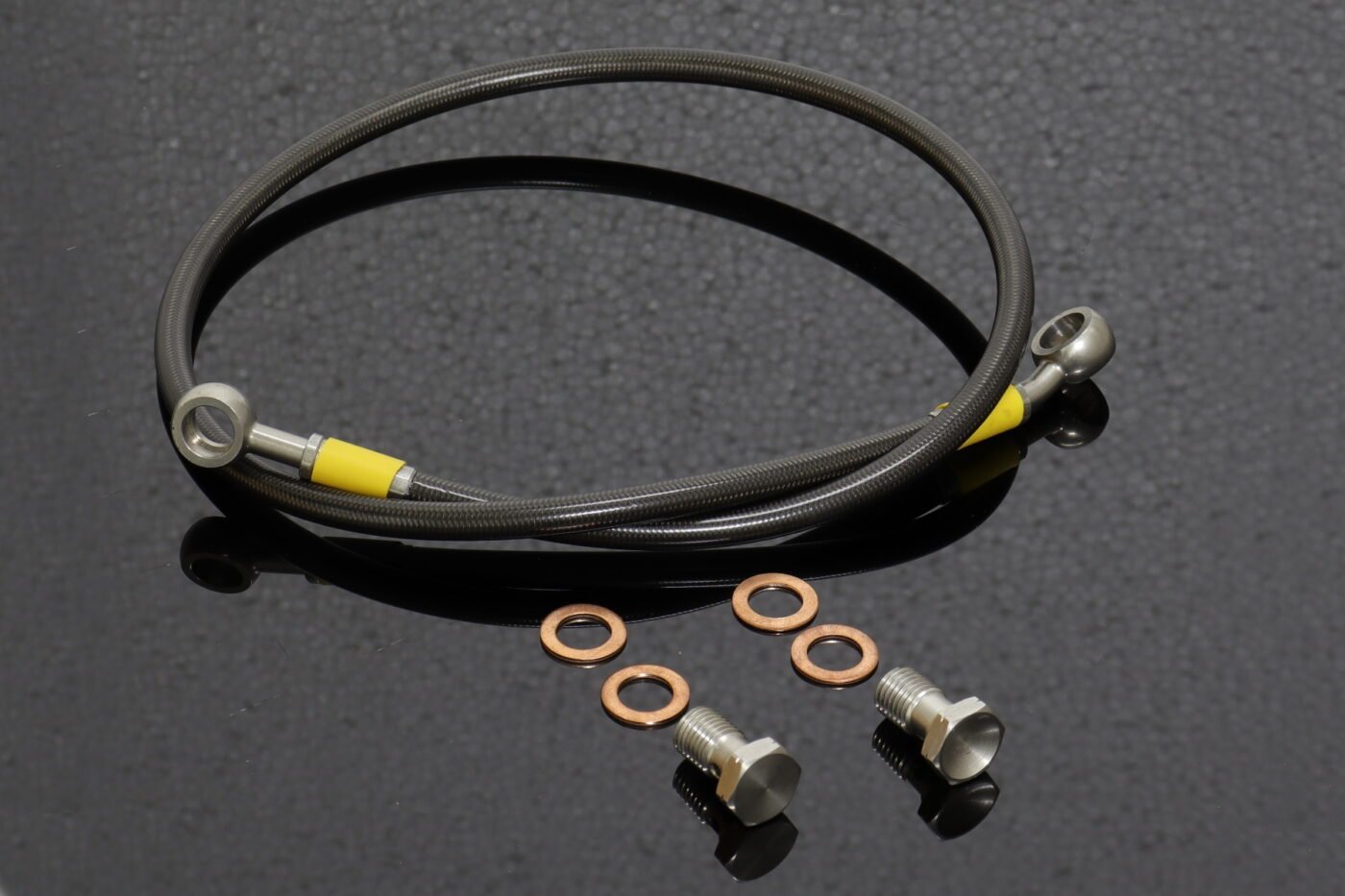

Kit includes:

• 1x HEL Brake Line
• 4x Sealing Washer
• 1x M10x1.25 Banjo Bolt
• 1x M10x1.00 Banjo Bolt

20 degree side bend banjo goes to master cylinder. 20 degree side bend banjo goes to caliper.

Route the hose through the standard brake hose retaining clips

Brembo caliper uses M10x1.00 banjo bolt. Not the same as standard Honda bolt.

For ease of bleeding, the caliper should be removed and orientated so that the bleed nipple is at the highest point.
