Description

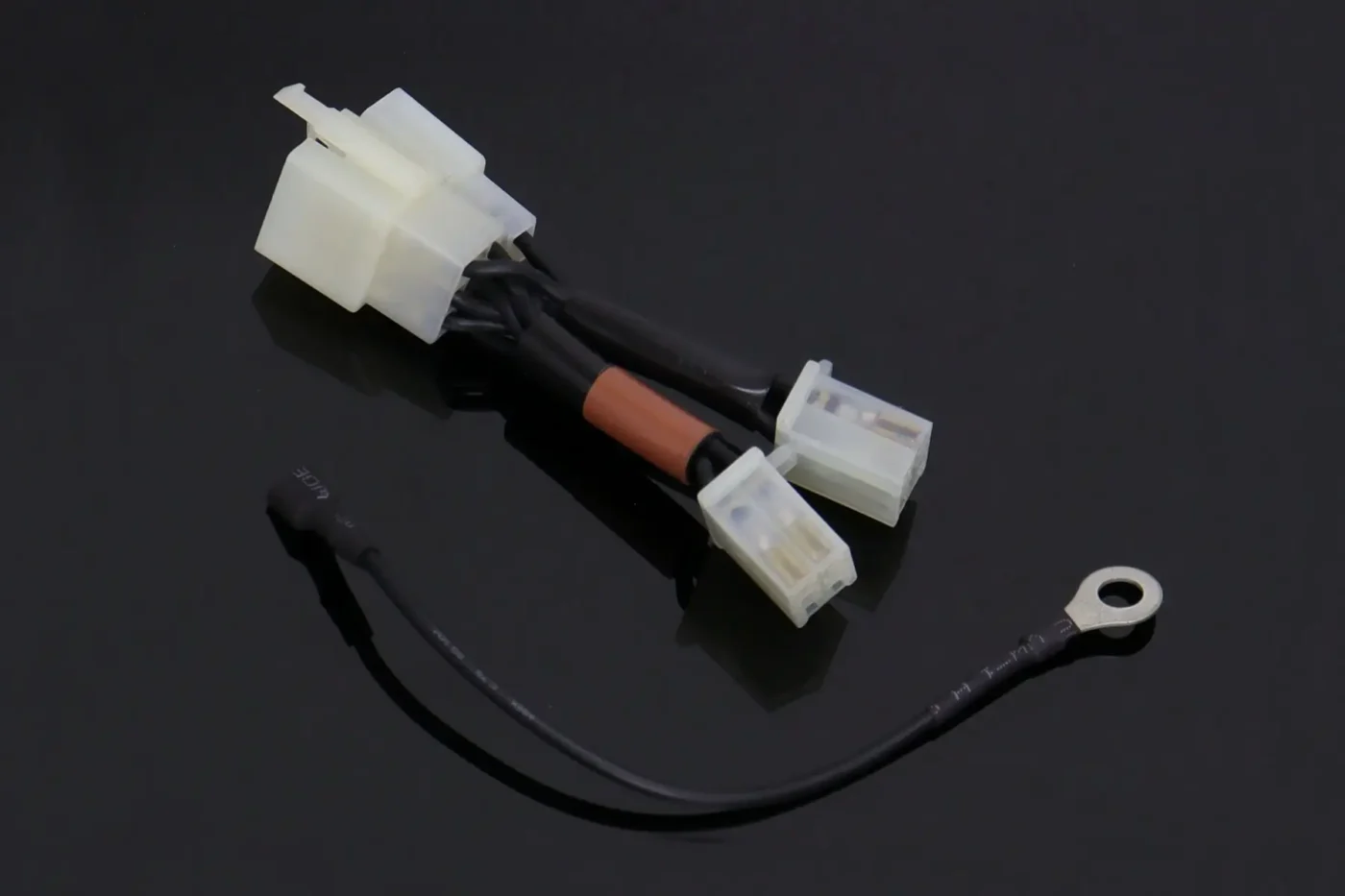

Harness Extension, Switch Assembly, Winker, RC36-2, RC30 Style

To update and improve the look of the RC36-2, RC30 Tribute, we recommend fitting our TYWH-0009 Switch Assembly, Winker, NC30 product.

However, this switch gear is not directly compatible with the RC36-2 wire harness, so we have designed this harness extension that simply plugs in line between the NC30 switch gear and the RC36-2 main harness, with no modifications required.

This extension harness allows the main headlights to be switched on and off, and also has the added function of a passing light switch. However, due to the headlight and tail light being on separate circuits within the RC36-2 wiring harness, the tail light will remain illuminated at all times while the ignition switch is ON, even with the headlight switch in the OFF position.

Please see the fitting instructions for the routing of the wires and the extension harness. Note that this is only relevant to the RC36-2 when fitted with our RC30 Tribute bodywork kit and wiring.

Also, see TYWH-0013 Set, Switch Gear Assy. RC36-2, RC30 Style (LINK). This set includes TYWH-0009, TYWH-0010, TYWH-0011 and TYWH-0012. There is additional information on the full functionality of this switchgear assembly in the description.

**IMPORTANT**

TYWH-0009 and TYWH-0011 are untested on the standard RC36-2.

Some modifications may be required to use these parts on the standard RC36-2.
