Description

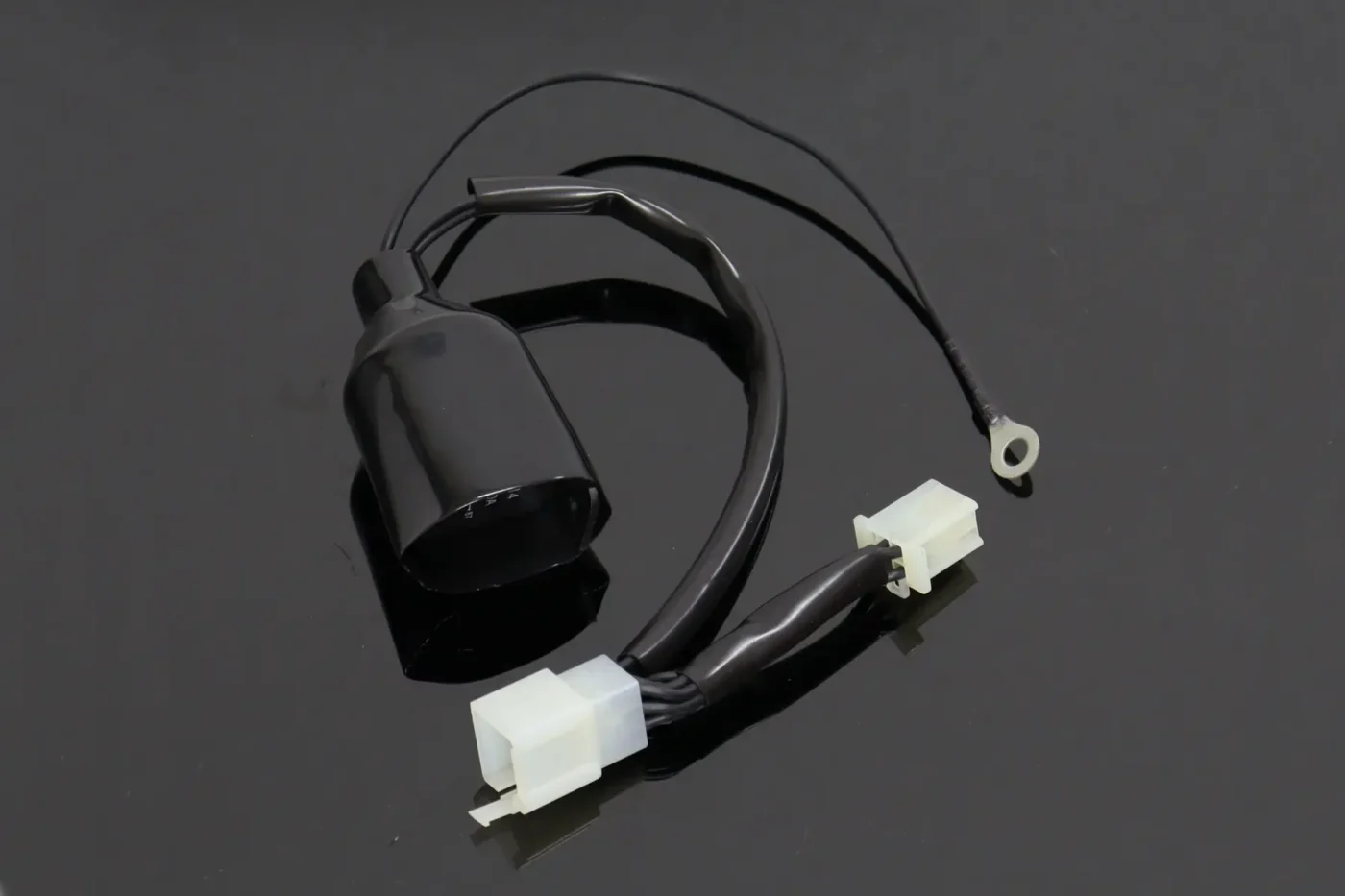

Harness Extension, Switch Assembly, Starter, RC36-2, RC30 Style

To update and improve the look of the RC36-2, RC30 Tribute,  we recommend fitting our TYWH-0010 Switch Assembly, Starter, NC30 product.

However, this switch gear is not directly compatible with the RC36-2 wire harness, so we have designed this harness extension that simply plugs inline between the NC30 switch gear and the RC36-2 main harness, with no modifications required.

We have incorporated a relay into the extension harness to switch off the headlights when the starter switch is pressed. Please note that only the headlights are switched off during starting, not the tail light. The tail light will remain illuminated at all times while the ignition switch is ON.

When the RUN/OFF switch is in the OFF position, the starter button will not activate the starter motor relay, so the engine will not turn over when the starter button is pressed. The starter motor is only active with the RUN/OFF switch in the ON position. This is the same function as the standard RC36-2.

Please see the fitting instructions for the routing of the wires and the extension harness. Note that this is only relevant to the RC36-2 when fitted with our RC30 Tribute bodywork kit and wiring.

Also, see TYWH-0013 Set, Switch Gear Assy. RC36-2, RC30 Style. This set includes TYWH-0009, TYWH-0010, TYWH-0011 and TYWH-0012. There is additional information on the full functionality of this switch gear assembly in the description.

**IMPORTANT**

TYWH-0010 and TYWH-0012 are untested on the standard RC36-2. Some modifications may be required to use these parts on the standard RC36-2.

The standard RC36-2 switch gear also incorporates the throttle housing.

We recommend using the throttle housing from an NC30 as it is directly compatible with the RC36-2 throttle cables and also the RC36-2 throttle tube.

Be sure to adjust the cables correctly to ensure free operation.
