Description

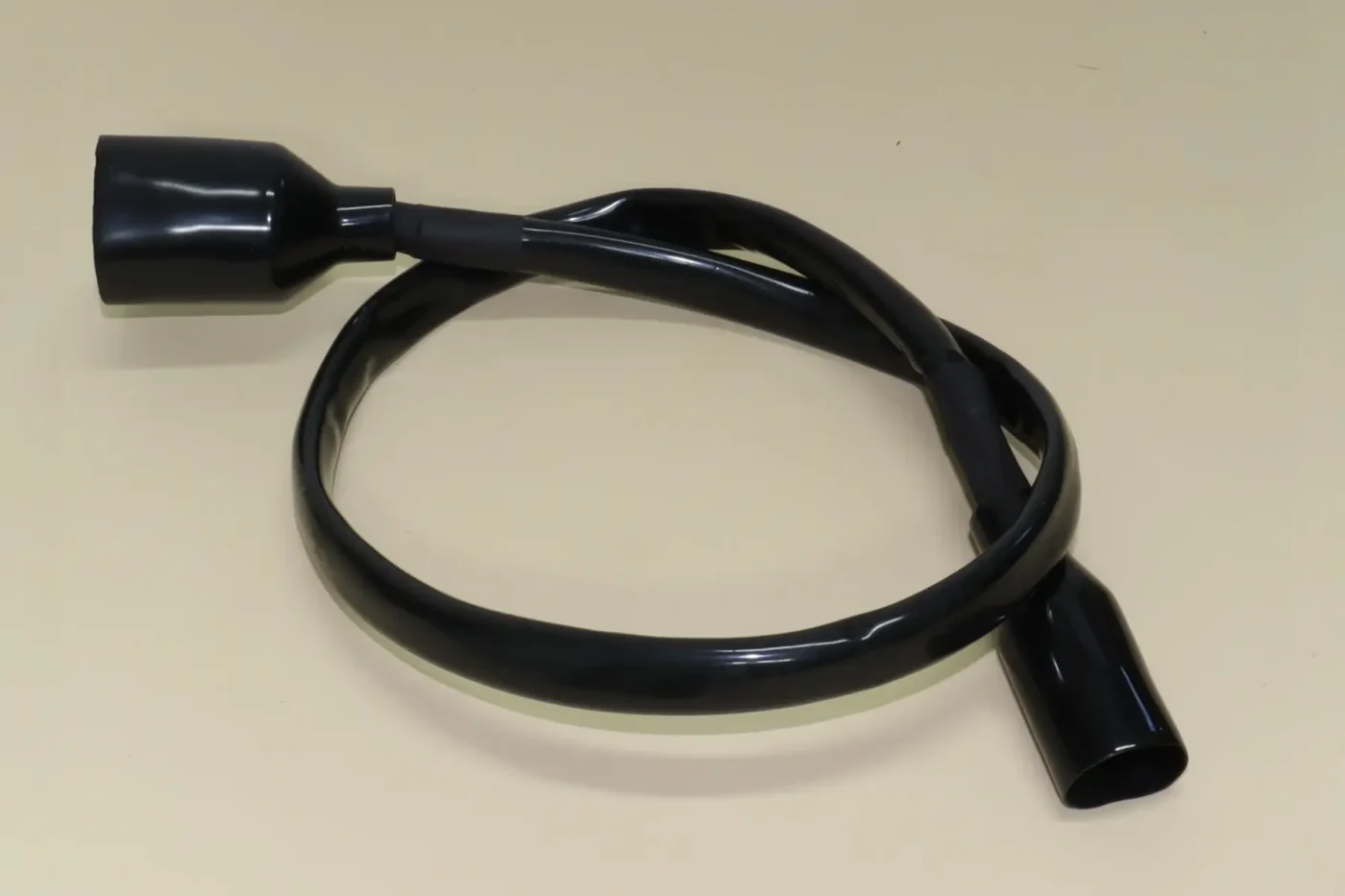

Harness Extension, SC28 (92-93) Meter, Honda VFR750R RC36-2

Wire harness extension for use with our TYGA RC30 Style bodywork kit.

To attach the wire harness extension to the original RC36-2 harness, please follow the instructions.

This harness is for use with the SC28 meter with just one TURN signal indicator light, and allows full functionality of the SC28 meter.

Note that the SC28 meter requires a mechanical speedometer cable. The SC28 speedometer will not work with the original RC36 electronic speedometer pickup.

NOTE: this harness is for the 1992 and 1993  CBR900RR-N and CBR9000RR-P models and will not fit the 1994 and 1995 SC28 CBR900RR-R and CBR900RR-S.For the latter please use TYWH-0008

For fitting instructions for TYWH-0005, TYWH-0006 and TYWH-0008 please refer to the wire harness and extension harness routing instructions and follow the following steps:

1, 2, 3, 4, 13, 14 & 15.

Note that the only connection difference between TYWH-0005 and TYWH-0008 at the main RC36-2 harness is that TYWH-0008 has one extra wire (#18) which is the connection for the electronic speedo.
