Description

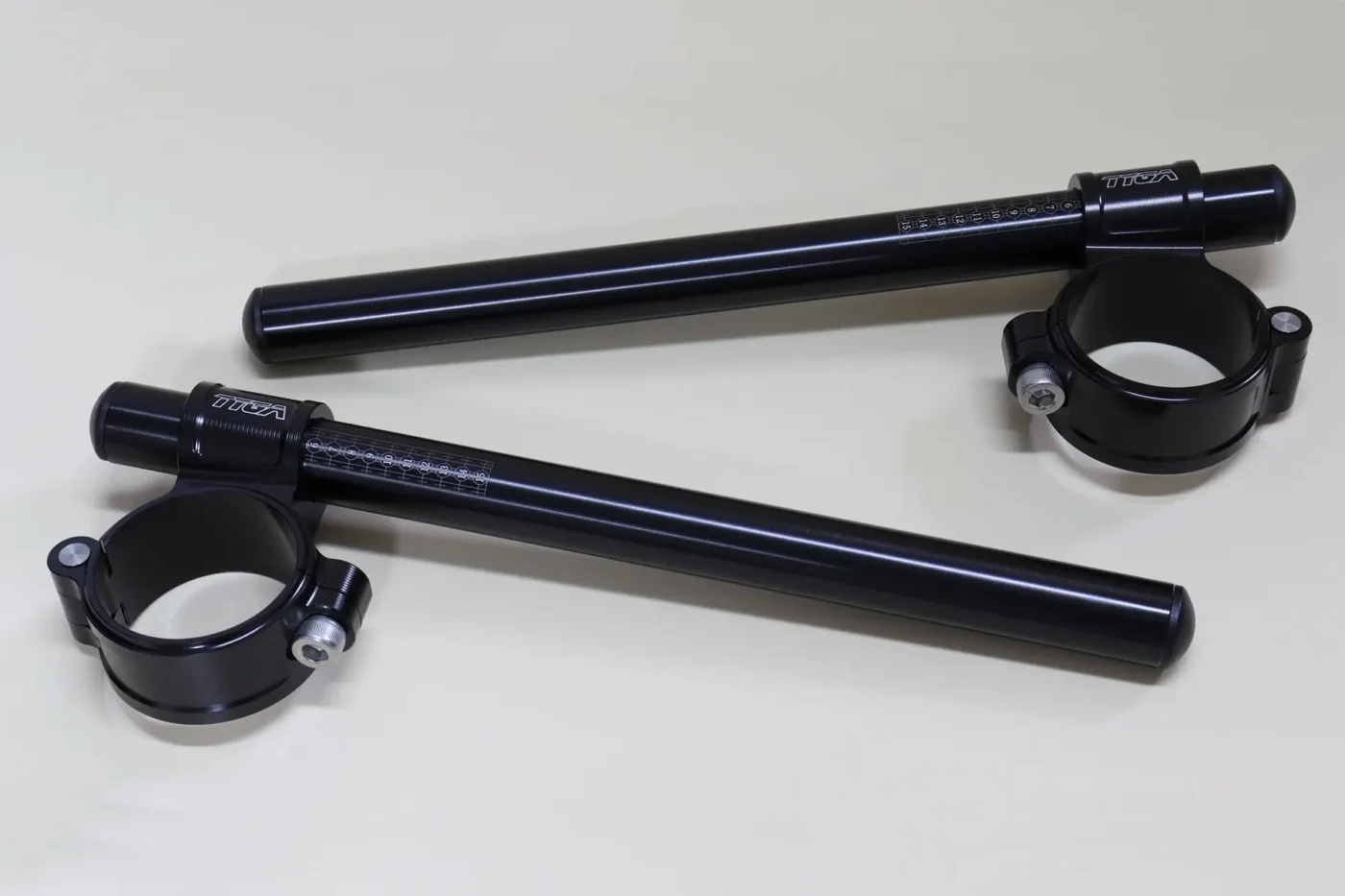

Handlebar Set, Racing, Hinge Type,  Black, KTM RC Series, 2014-2021

Consisting of the following products:

1x TYLY-1331L    Handlebar Clamp, Left, Hinge Type, Black, KTM RC Series

• This handlebar clamp is designed to be used with our TYGA top triples: TYLY-1073 (2014-2021) and TYLY-1273 (2022-2023) and can be used with other models with a 51 mm. clamping face on the fork leg.
• The clamp features a hinged design for quick and easy fitting.
• * The Handlebar angle is 7 degrees down.

1x TYLY-1331R    Handlebar Clamp, Right, Hinge Type, Black, KTM RC Series

• This handlebar clamp is designed to be used with our TYGA top triples: TYLY-1073 (2014-2021) and TYLY-1273 (2022-2023) and can be used with other models with a 51 mm. clamping face on the fork leg.
• The clamp features a hinged design for quick and easy fitting.
• * The Handlebar angle is 7 degrees down.

2x TYLY-2069C   Handlebar Tube, Index Mark, Assy., Black

• The Handle bar diameter is 7/8” (22.2mm), and features index marks for easy and consistent assembly.
• Comes fitted with plastic bungs in each end.

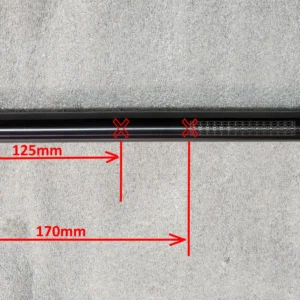

• Two 5mm location holes are drilled 125mm and 170mm from end See picture for specification.
