Description

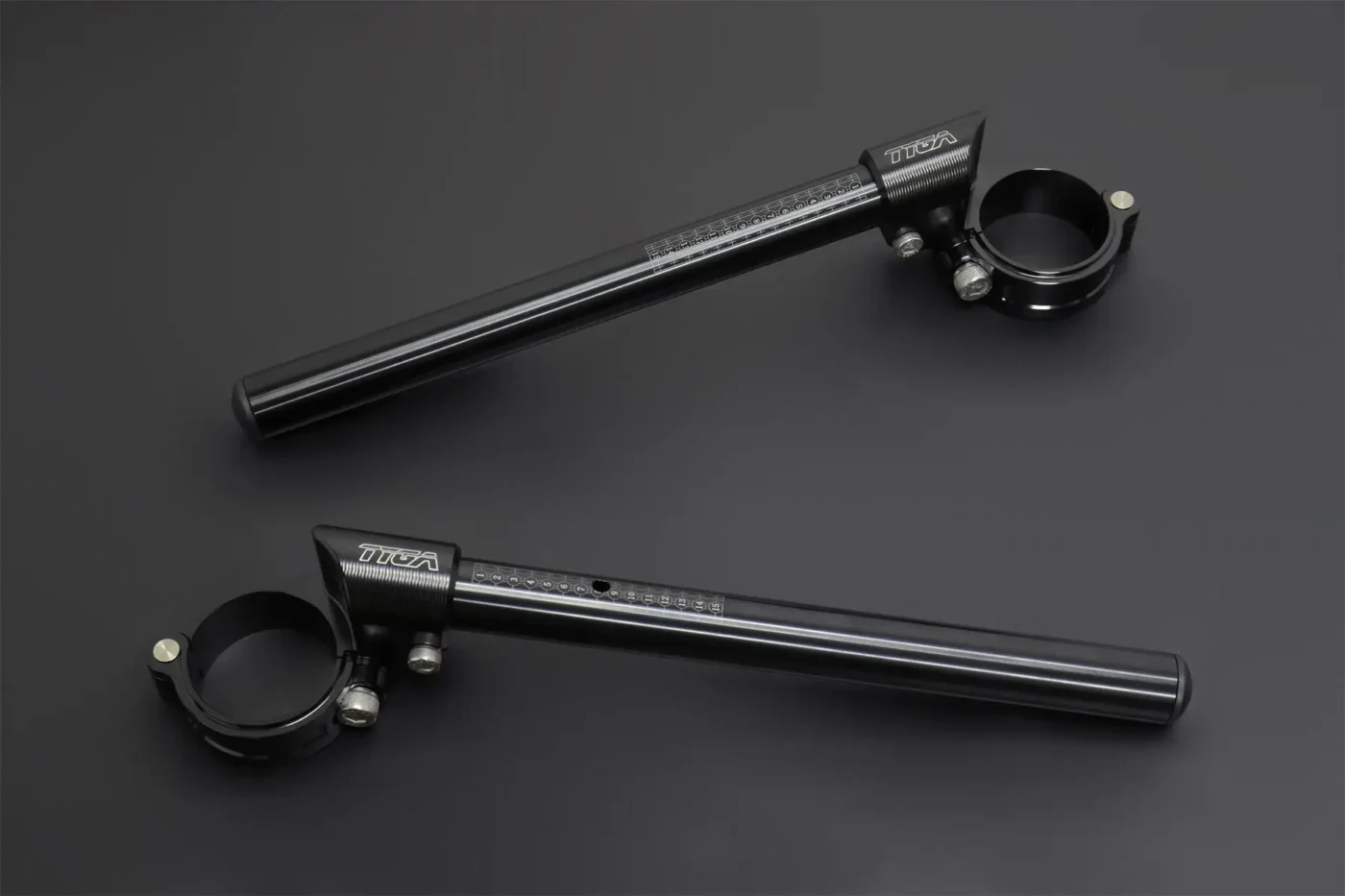

Handlebar Set, Racing, Black, ZX-4R(R)

Consisting of the following products:

• 1x TYLY-1375L Handlebar Clamp, Left, Hinge Type, Black, Ninja ZX-4R(R)
• 1x TYLY-1375R Handlebar Clamp, Right, Hinge Type, Black, Ninja ZX-4R(R)
• 1x TYLY-1376L Handlebar Tube, Index Mark, Left, Black, NinjaZX-4R(R)
• 1x TYLY-1376R Handlebar Tube, Index Mark, Right, Black, NinjaZX-4R(R)

The Handlebar angle is 7 degrees down.

Handlebar Clamp(s): 45mm
For use with Handlebar tubes of Ø 22.2mm (5/8″)

The Handle bar tubes supplied in this set features index marks for easy and consistent assembly.

Switchgear location holes are pre-drilled in both the left and right handlebar tube.

This handlebar set is 100% compatible with both the TYLY-0373 Top Triple Clamp, CNC Black, Ninja ZX-4R(R), and the OEM top triple clamp.

Fitment is very simple. We advise to remove the clutch lever and front brake master assemblies first, then remove the screws that secure the switchgear and move them out of the way and you can then pull the bars free of the bike. Then swap over the left hand grip and the throttle assembly and fit back on the bike as a reverse of the disassembly.
