Description

Carb Service Kit A, 40 pieces, Honda VFR750F RC36 (90-93)

LiteTek Carburettor Seal Kit to suit: Honda VFR750F RC36 (1990-1993)
Made from long lasting, ethanol resistant elastomers and Viton®

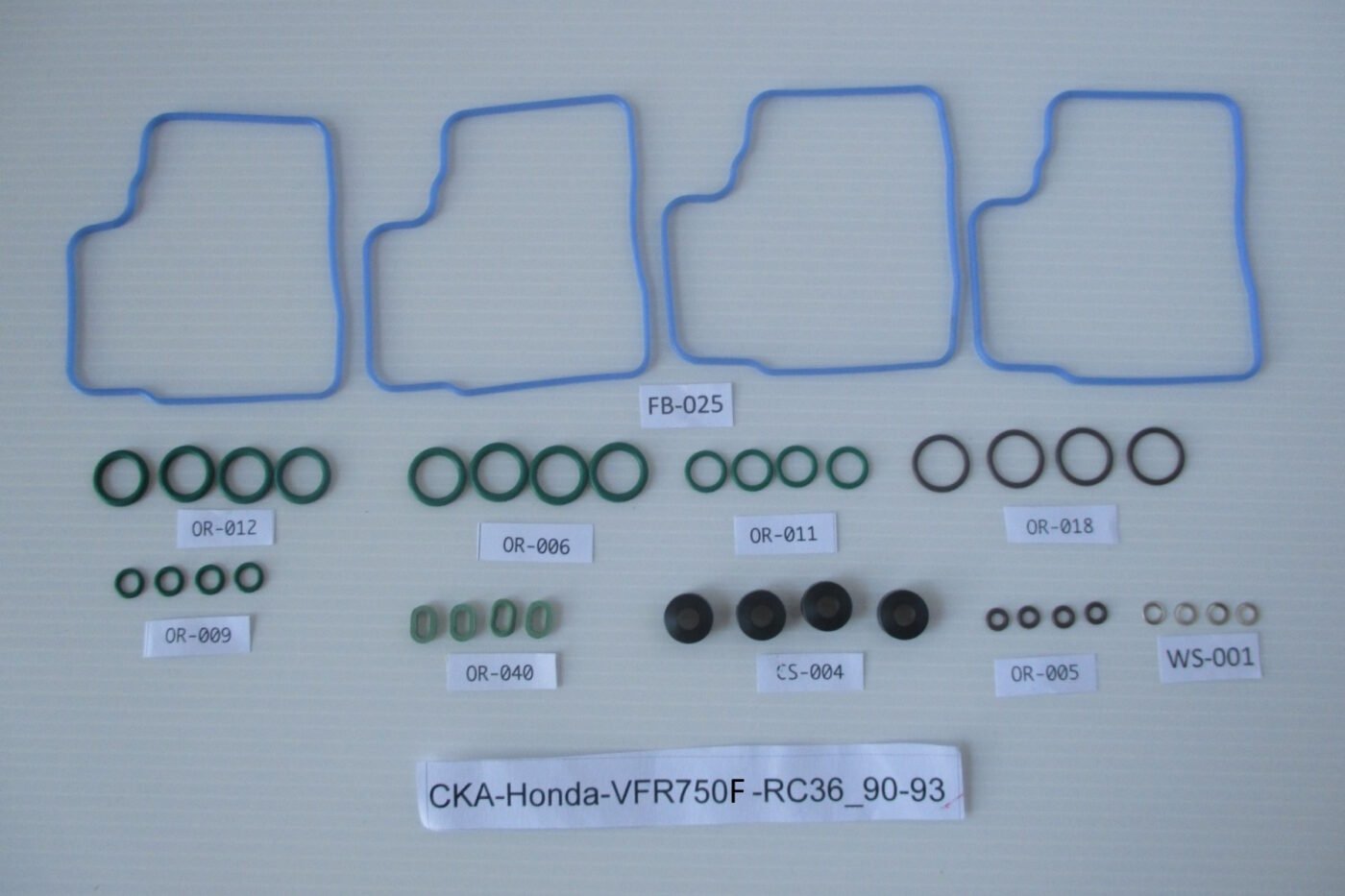

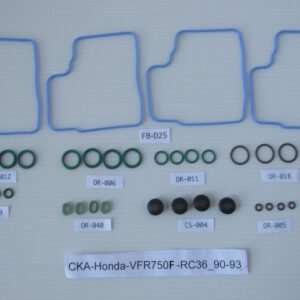

Consist of the following items:

• 4x FB-025 Float Bowl Ring, Material: Flourosilicone (Part of Honda Kit No. 16010-MT4-000)
• 4x OR-005 Pilot Screw O-Ring, Material: Viton 70A (Part of Honda Kit No. 16010-MT4-000)
• 4x WS-001 Pilot Screw Washer, Material: Stainless Steel
• 4x OR-009 Drain Screw O-Ring, Material: Viton 70A (Part of Honda Kit No. 16010-MT4-000)
• 4x OR-040 Air Cut Seal, Material Viton 70A (Part of Honda Kit No. 16048-MM5-671)
• 4x OR-006 Needle O-Ring, Material: Viton 70A (Part of Honda Kit No. 16010-MT4-000)
• 4x OR-018 Vacuum Breather O-Ring, Material: Viton 70A (Part of Honda Kit No. 16040-MR7-004)
• 4x OR-011 Overflow O-Ring, Material: Viton 70A (Part of Honda Kit No. 16040-MR7-004)
• 4x OR-012 Fuel Tee O-Ring, Material: Viton 70A (Part of Honda Kit No. 16040-MR7-004)
• 4x CS-004 Choke Plunger Cap, Material: HNBR (Part of Honda assembly 16047-ML7-004 or 16047-MAJ-870)

Please check that your Honda uses the oval shaped air-cut ring, that is part of the Honda air cut valve assembly (part number 16048-MM5-671), to ensure that this is the correct kit for your motorcycle before proceeding with your purchase.
