Description

Carb Service Kit A, 39 pieces, Honda CBR400RR NC23

LiteTek Carburettor Seal Kit to suit
Honda CBR400RR NC23(G-H-J-K)
Made from long lasting, ethanol resistant elastomers and Viton®

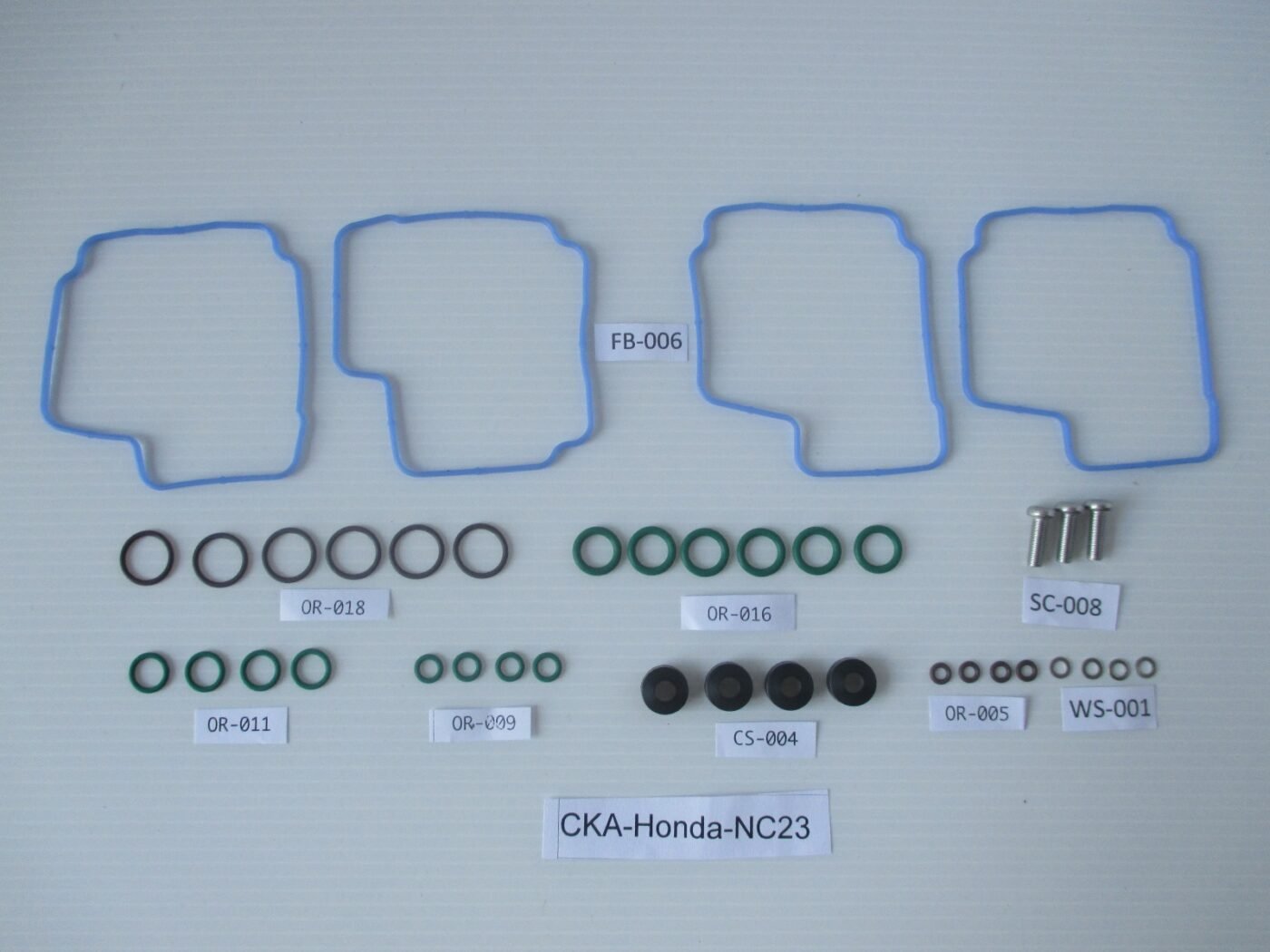

Consist of the following items:

• 4x FB-006 Float Bowl Ring, Material: Flourosilicone (Part of Honda Assembly Part No. 16010-MN4-003 superseded by 16010-MN4-305)
• 4x OR-005 Pilot Screw O-Ring, Material: Viton 70A (Part of Honda Assembly Part No. 16010-MN4-003 superseded by 16010-MN4-305)
• 4x WS-001 Pilot Screw Washer, Material: Stainless Steel
• 4x OR-009 Drain Screw O-Ring, Material: Viton 70A (Part of Honda Assembly Part No. 16010-MN4-003 superseded by 16010-MN4-305)

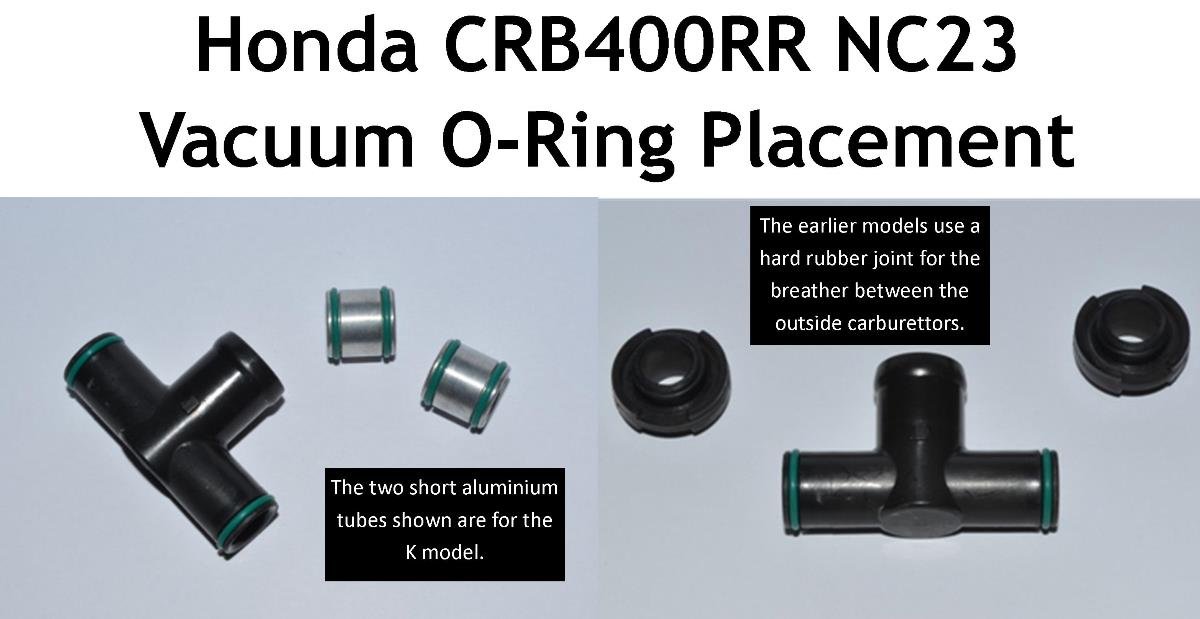

• 6x OR-018 Vacuum Breather O-Ring, Material Viton 70A (The parts book lists the part number for the vacuum o-rings as being part of the kit 16040-MM5-601. However, that kit only contains the o-rings for the fuel tubes and float bowl breather tee pieces. Therefore, we have added these o-rings to the kit)

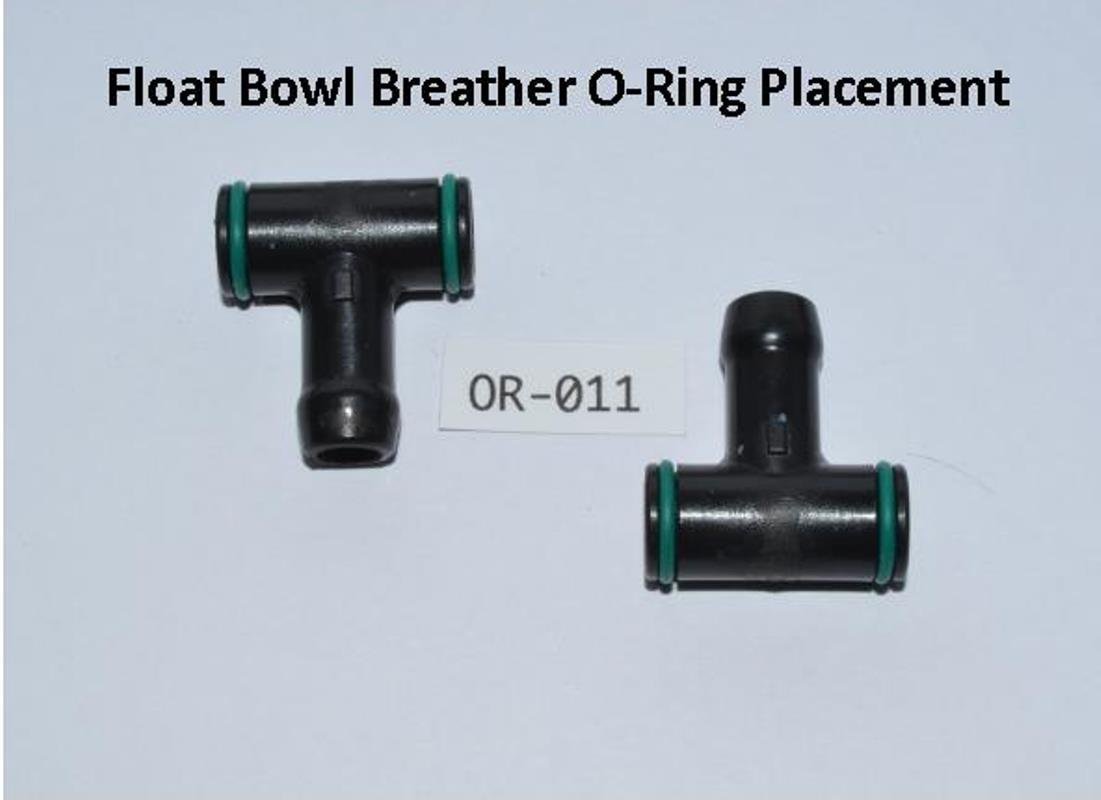

• 4x OR-011 Float Breather O Ring, Material: Viton 70A (Part of Honda Assembly Part No. 16040-MN4-003 superseded by 16040-MM5-601)
• 6x OR-016 Fuel O-Ring, Material: Viton 70A (Part of Honda Assembly Part No. 16040-MN4-003 superseded by 16040-MM5-60)
• 4x CS004 Choke Plunger Cap, Material: HNBR (Part of Honda Assembly Part No. 16046-KT8-003 or 16046-KY2-711)
• 3x SC-008 Throttle Synch Screws, Material: Stainless Steel
