Description

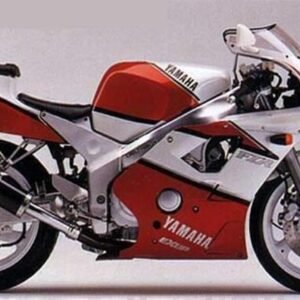

Carb Service Kit A, 36 pieces, Yamaha FZR400RR 3TJ1 & 3TJ32
LiteTek Carburettor Seal Kit to suit: Yamaha FZR400RR 3TJ1 & 3TJ32
Carburettor Model: Mikuni BDST 32
Made from long lasting, ethanol resistant elastomers and Viton®

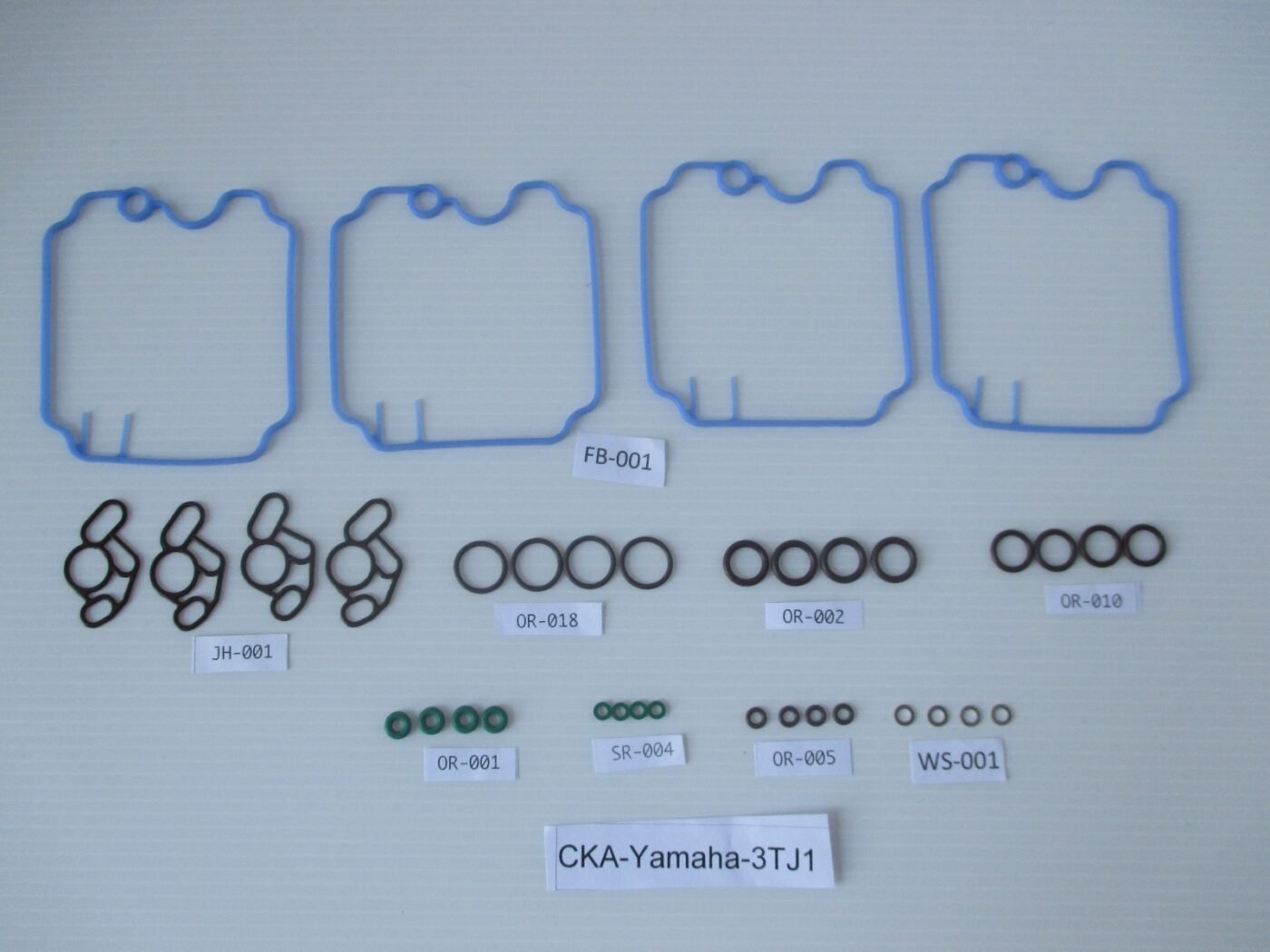

Consist of the following items:

• 4x FB-001 Float Bowl Seal, Material: Flourosilicone (OE part number: 3GM-14997-00)
• 4x JH-001 Jet Housing Seal, Material: Viton 70A (OE part number: 3LF-14147-00)
• 4x OR-005 Pilot Screw O-Ring, Material: Viton 70A ( Part of Yamaha Assembly: Part Number 12R-14105-00)
• 4x WS-001 Pilot Screw Washer, Material: Stainless Steel (OE part number:N/A)

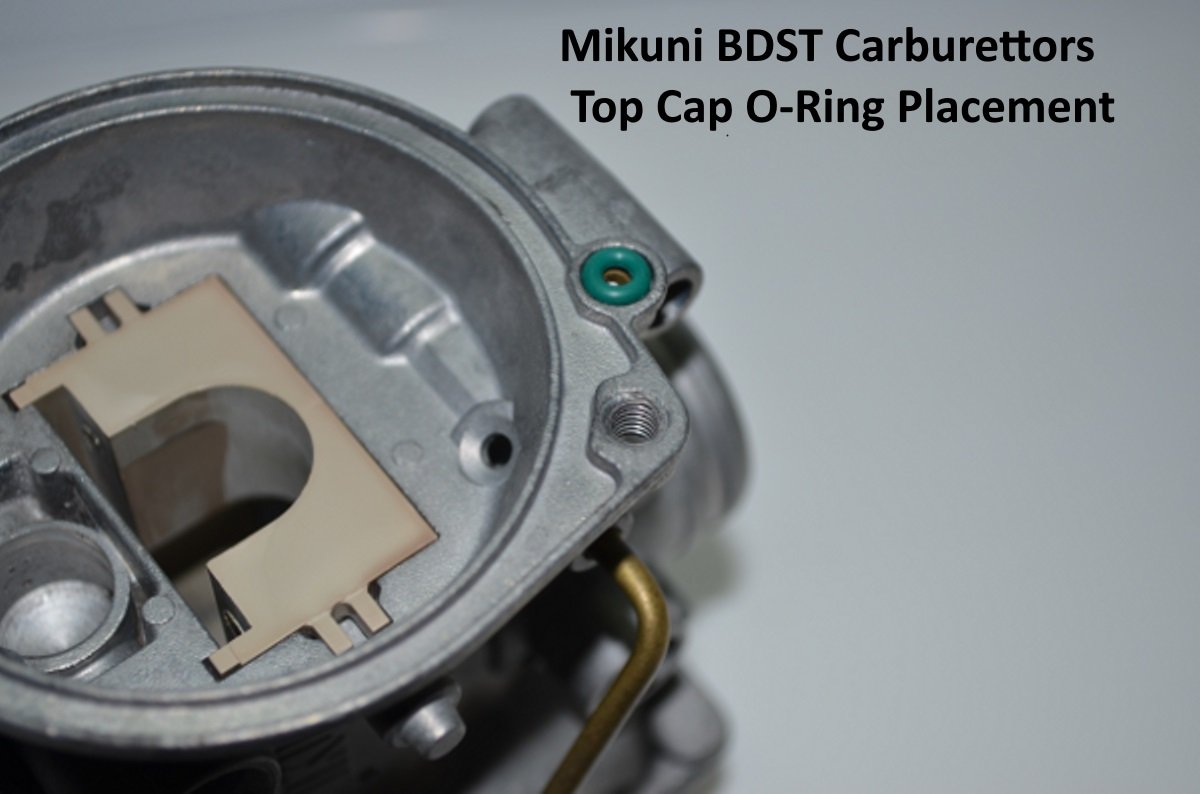

• 4x OR-001 Top Cap O-Ring, Material: Viton 70A (OE part number: 3EN-14239-00)

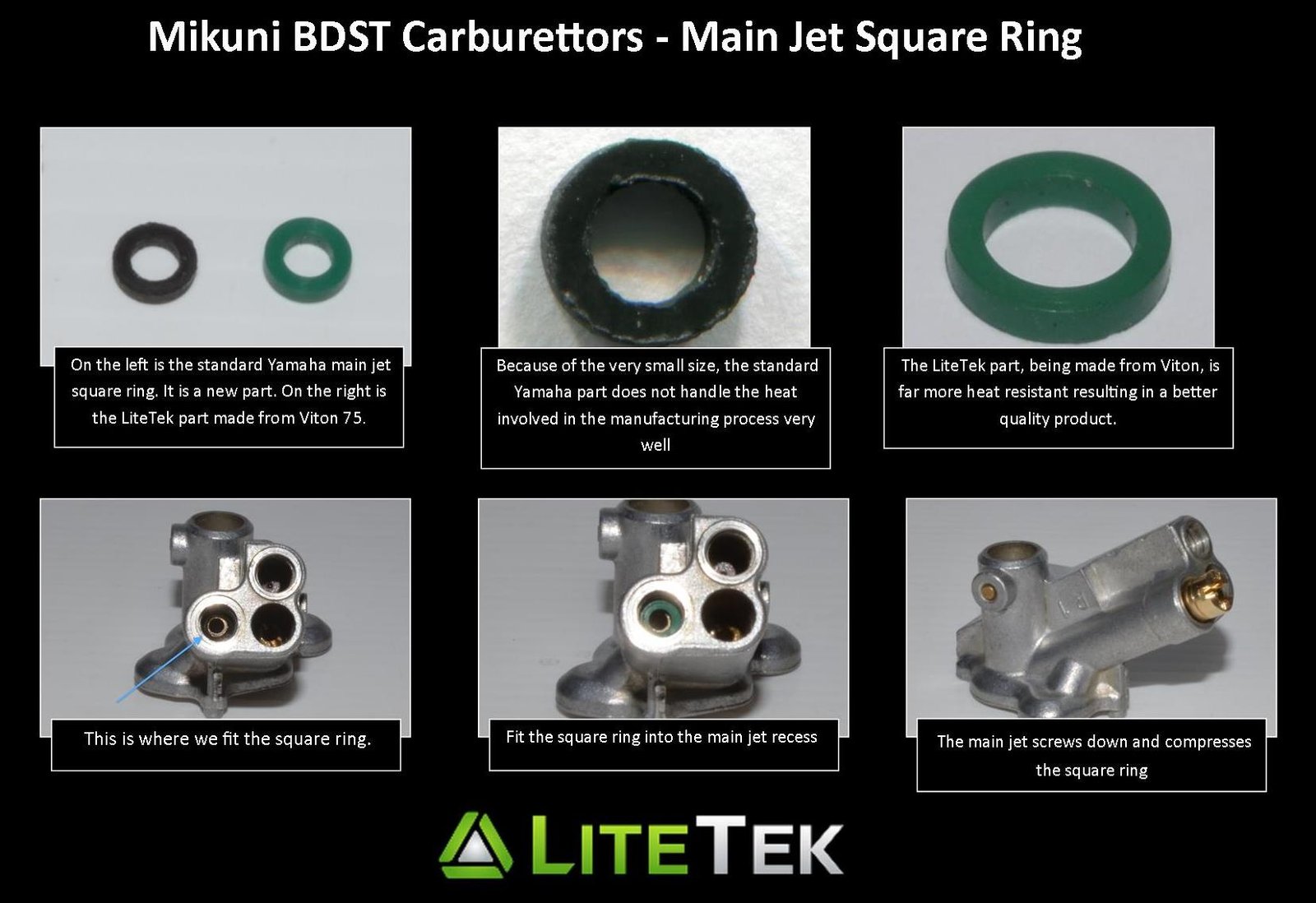

• 4x SR-004 Main Jet Sq ring, Material: Viton70 A (OE part number: 1AE-14227-00)
• 4x OR-002 Float Mount O-Ring, Material: Viton 70A (OE part number: 3EN-14147-00)

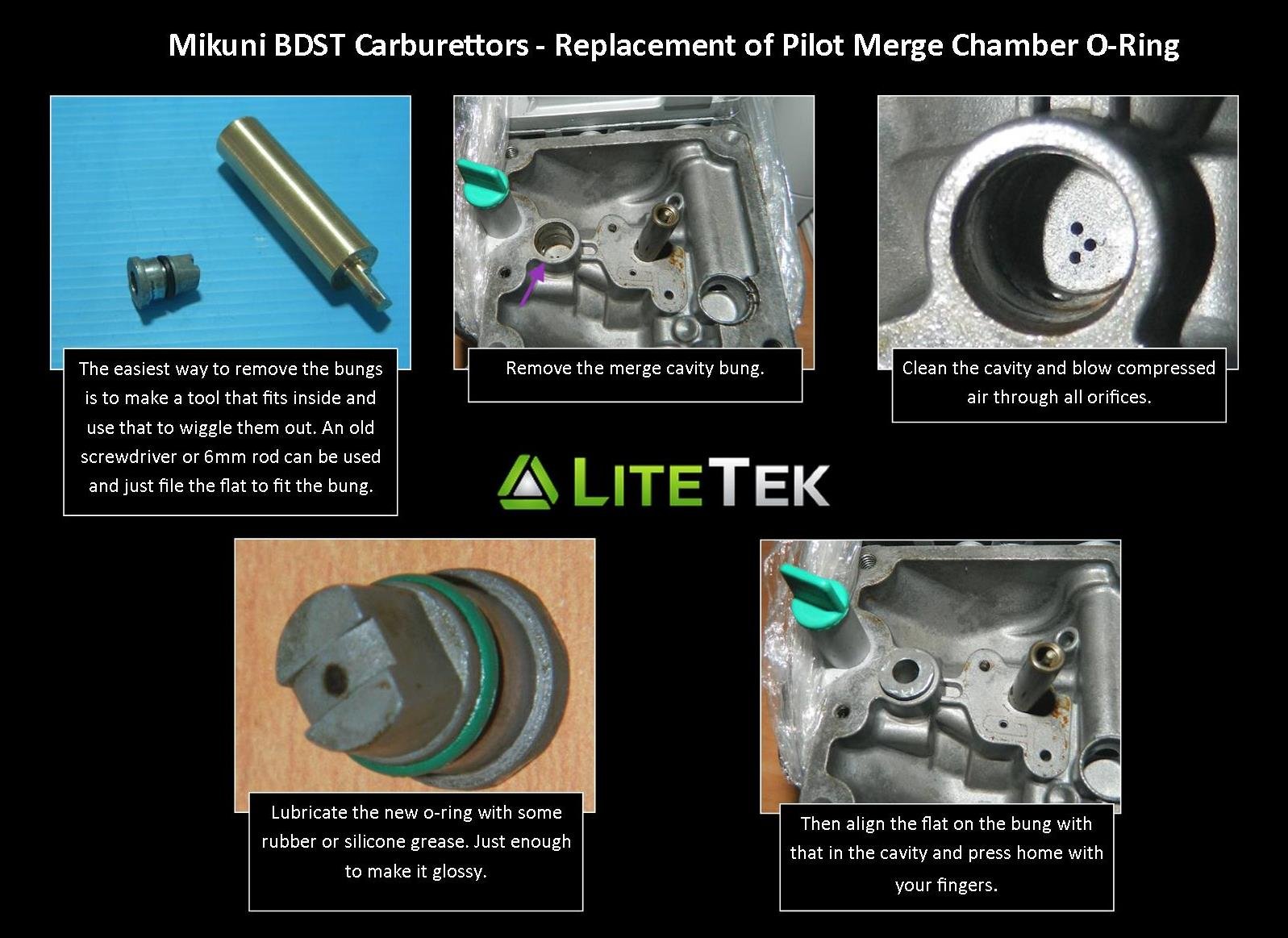

• 4x OR-010 Pilot Merge Cavity O-Ring, Material: Viton 70A ( OE part number: N/A)

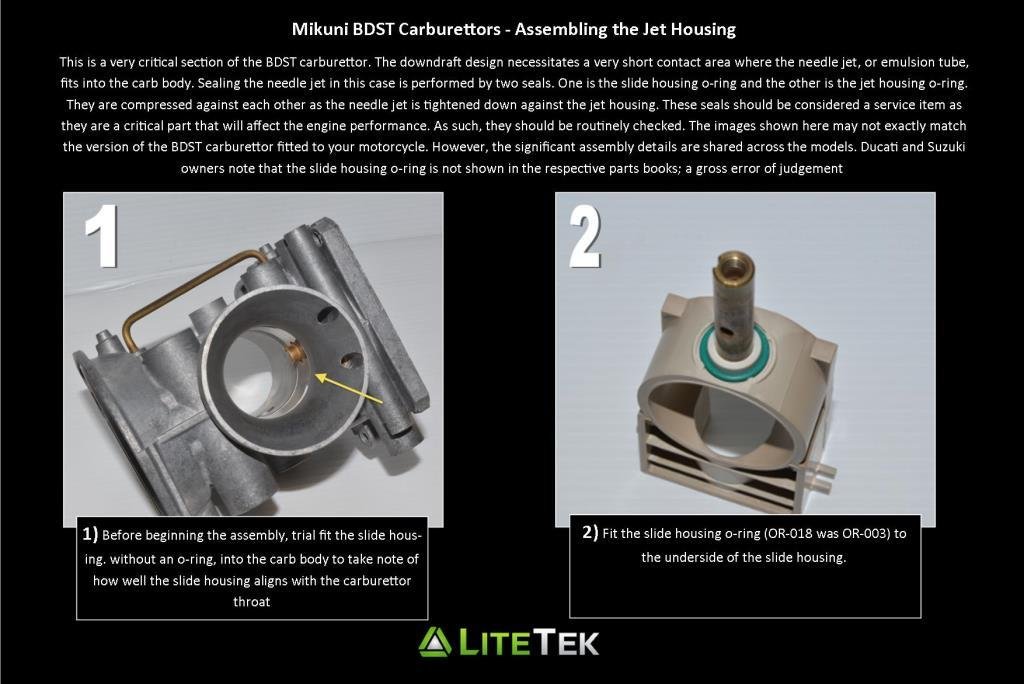

• 4x OR-018 Slide Housing O-Ring, Material: Viton 70A (OE part number: 1AE-14147-00)


  ---
