Description

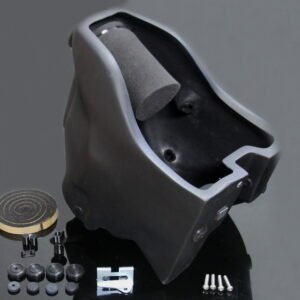

Airbox, GRP, NSR250 MC21/MC28

This high quality GRP air box is an adaptation of the HRC air box and has the following features.

1. Maximum volume, more than double the size of the stock air box for better flow and power
2. High flow, large area foam filter for street use
3. Snug fitting rubber base to prevent leaks around carb insulators
4. Designed to be used with a full street harness as well as race harness
5. Can be used with MC21 and MC28 models or combination of either model (fuel tanks, harnesses and carburetors)
6. Allows for use of carburetor solenoids and supplied with special mounting hardware
7. Allows for use of two stroke oil pump and supplied with holes for cables and lines as well as blanking plugs
8. Uses HRC seal gap , part number 64234-NX5-770 for a good seal with the fuel tank
9. Built in high grade epoxy and GRP for light weight
10. Provided with a hole and seal for external fuel cock as well as a short type for racers who want ease of removal of fuel tank

See also BPCX-0007 for the same airbox in carbon/kevlar

*please do note some product photos are for reference and show the Carbon/Kevlar version fitted on our NSR250 project bike
