Description

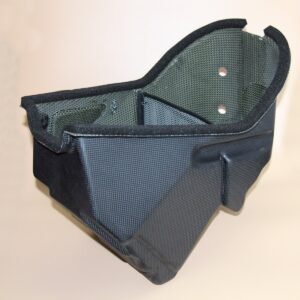

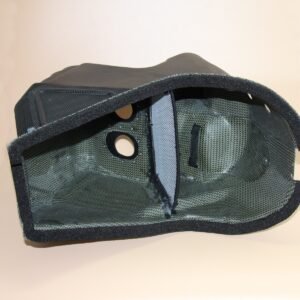

Air Box, Carbon/Kevlar, RS250, NX5
This high quality carbon/Kevlar air box is a direct replacement for the stock HRC one (80101-NX5-770).
It is supplied ready to install and includes the following actual HRC or equivalent TYGA aftermarket parts:

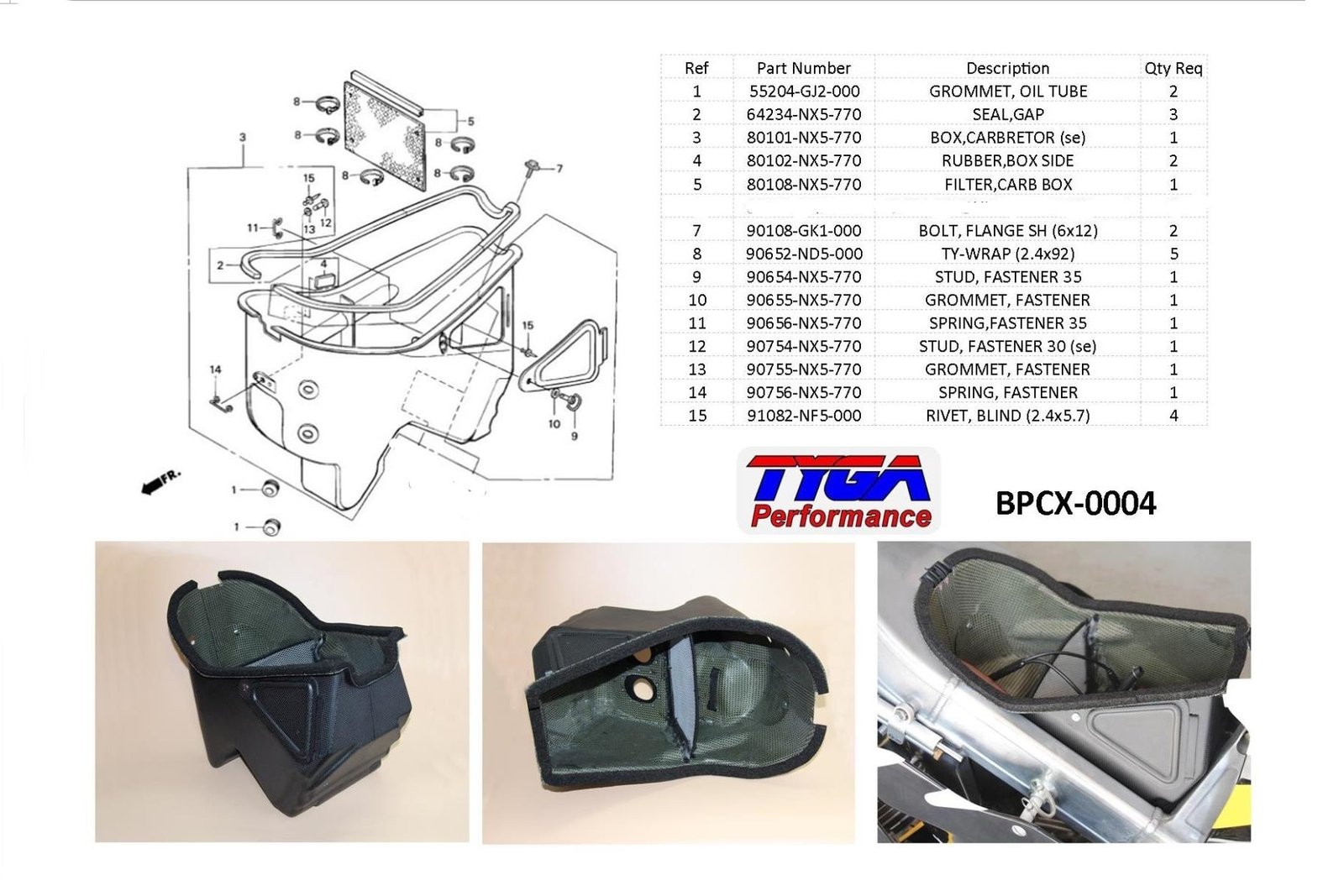

| Ref | Part Number | Description | Qty Req |
| 1 | 55204-GJ2-000 | GROMMET, OIL TUBE | 2 |
| 2 | 64234-NX5-770 | SEAL,GAP | 3 |
| 3 | 80101-NX5-770 | BOX,CARBRETOR (se) | 1 |
| 4 | 80102-NX5-770 | RUBBER,BOX SIDE | 2 |
| 5 | 80108-NX5-770 | FILTER,CARB BOX | 1 |
| 7 | 90108-GK1-000 | BOLT, FLANGE SH (6×12) | 2 |
| 8 | 90652-ND5-000 | TY-WRAP (2.4×92) | 5 |
| 9 | 90654-NX5-770 | STUD, FASTENER 35 | 1 |
| 10 | 90655-NX5-770 | GROMMET, FASTENER | 1 |
| 11 | 90656-NX5-770 | SPRING,FASTENER 35 | 1 |
| 12 | 90754-NX5-770 | STUD, FASTENER 30 (se) | 1 |
| 13 | 90755-NX5-770 | GROMMET, FASTENER | 1 |
| 14 | 90756-NX5-770 | SPRING, FASTENER | 1 |
| 15 | 91082-NF5-000 | RIVET, BLIND (2.4×5.7) | 4 |
